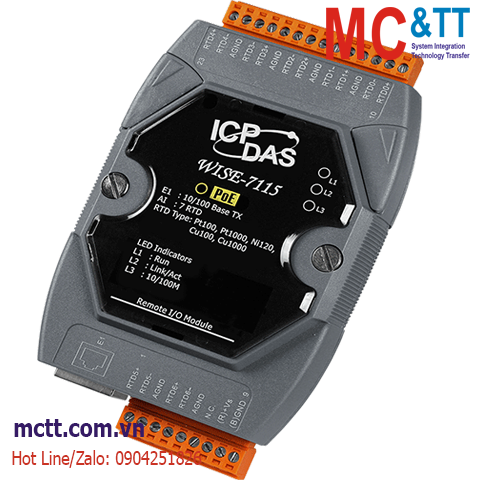

Module lập trình nhúng Wise IoT 7 kênh RTD 3 Wires ICP DAS WISE-7115 CR
Feature
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (AI: 7-channels RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000); 3-wire RTD Input with Lead Resistance Elimination).
- Support I/O channel monitoring/control, Timer operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-7115 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7115 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This module WISE-7115 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 16-bit, 7-channel RTD inputs. Each channel is allowed to configure an individual range that supports 3-wire RTD lead resistance elimination and open wire detection for RTD measurement.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
More detailed application case, you can find on here.
Specifications
| Software |
| Protocol |
• Modbus TCP
• CGI Command (Sending) |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function |
| CPU Module |
| CPU |
16-bit CPU (80 MHz) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
| LED Indicators |
| Status |
1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
1 x Ethernet 10/100M Speed |
| Analog Input |
| Channels |
7 (Differential) |
| Type |
RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000) |
| Resolution |
16-bit |
| Accuracy |
±0.05% |
| Sampling Rate |
12 Sample/Sec. (Total) |
| Input Impedance |
>1M Ω |
| Common Mode Rejection |
150 dB |
| Normal Mode Rejection |
100 dB |
| Overvoltage Protection |
110 VDC/VAC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| 3-wire RTD Lead Resistance Elimination |
Yes |
| Zero Drift |
±0.5 μV/°C |
| Span Drift |
±20 μV/°C |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X |
| PoE |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC |
| Consumption |
2.6 W |
| Powered from PoE |
Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting/Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WISE-7115 CR |
Intelligent I/O Module with 7-ch RTD Input with 3-wire RTD Lead Resistance Elimination and PoE (RoHS) |
