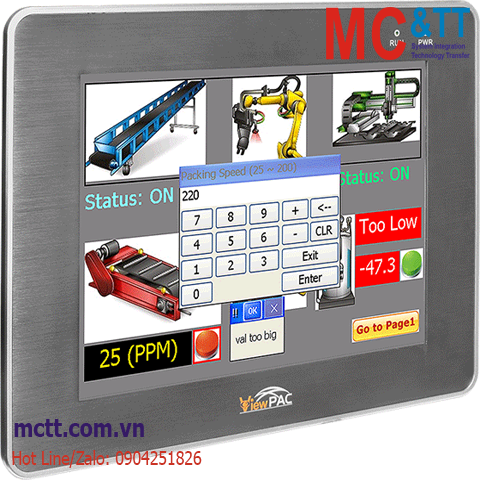

Bộ lập trình nhúng màn cảm ứng 10.4 inch ISaGRAF ViewPAC CPU PXA270 + WinCE 5.0 ICP DAS VP-4137-EN CR

Chia sẻ:
Mã sản phẩm: VP-4137-EN
Thương hiệu: ICP DAS
Tình trạng:

ISaGRAF based ViewPAC with 10.4" Touch LCD and 3 I/O slots (OS: Multilanguage)

Liên hệ
Mô tả

Bộ lập trình nhúng màn cảm ứng 10.4 inch ISaGRAF ViewPAC CPU PXA270 + WinCE 5.0 ICP DAS VP-4137-EN CR

VP-4137-EN dừng sản xuất, thay thế và nâng cấp thành https://mctt.vn/VP-4238-CE7-cr

Features

• PXA270, 520 MHz CPU
• Windows CE 5.0
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• 3 I/O Slots
• IP65 Compliant Front Panel
• 10.4”TFT LCD
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Audio with Earphone-Out

Introduction

The ISaGRAF WinCE ViewPAC  VP-4137 is the new generation WinCE 5.0 based ISaGRAF PAC (Programmable Automation Controller) from ICP DAS. Each VP-4137 is equipped with a PXA270 CPU (520 MHz) running a Windows CE 5.0 operating system, a variety of input/output ports (USB, Ethernet, RS-232/485), 3 I/O slots that can be used to integrate high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series), and a 10.4”TFT LCD with a rubber keypad  Touch LCD.

The benefits of running Windows CE 5.0 on a WinPAC device include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. WinPAC devices are also capable of running ISaGRAF and PC-based control software, such as Visual Basic .NET, Visual C#, etc., providing all of the best features of both traditional PLCs and Windows capable PCs.

Notice:

ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.

Win-GRAF would be a better choice for users.

The ViewPAC Series VP-2xW7/4xx7 support eLogger HMI:

Application

Specifications

Software
OS Windows CE 5.0
Protocol • NET ID
• Modbus TCP/IP Master
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• Modbus TCP/IP Slave
• Web HMI Protocol
• User-defined Protocol
• I-7000 & I-87K RS-485 Remote I/O
• M-7000 Series Modbus I/O
• Modbus TCP/IP I/O
• FRnet I/O
• Send Email
• Ebus
• SMS
• MMICON/LCD
• UDP Server & UDP Client
• TCP Client
• GPRS/SMS
• SQL Client
• Hot-Swap and Redundant System
• CAN/CANopen
• CANopen Master
• HART Solutions
• FTP Client
• eLogger HMI
Development Embedded ISaGRAF SoftLogic (IEC 61131-3)
Service FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplifi ed Chinese, Traditional Chinese
SDK Dll for eVC, Dll for Visual Studio.Net 2005/2008
Main Unit
CPU PXA270 or compatible, 32-bit, 520 MHz
64-bit Hardware Serial Number Yes
System Memory 128 MB SDRAM
Storage 128 MB Flash, 4 GB microSD card (up to 32 GB)
Non-Volatile Memory 16 KB EEPROM, 512 KB Dual battery backup SRAM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Type LCD
Size 10.4" (4:3)
Backlight Life 50,000 hours
Brightness 400 cd/m2
Resolution 800 x 600
Touch Panel 5-wire, resistive type; light transmission: 80 %
LED Indicators
Status 1 x System, 1 x Power
I/O Expansion
I/O Type I-8K, I-87K series
Slots 3
COM Ports
Ports 1 x RS-232, 1 x RS-485 (2500 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch Yes, (0 ~ 9)
Audio
Jack Earphone-Out
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 2 x USB 1.1 (host),1 x USB 1.1 (client)
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Consumption 8.5 W
Mechanical
Casing Plastic
Dimensions (mm) 293 x 231 x 129 (W x L x H)
Installation Panel Mounting
Ingress Protection Rating Front panel: NEMA 4/IP65
Weight 3.6 Kg
Environment
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH (non-condensing)

Download

Datasheet

Documents

Ordering Information

VP-4137-EN     CR  ISaGRAF based ViewPAC with 10.4" Touch LCD and 3 I/O slots (OS: Multilanguage) (RoHS)
