Features
• PXA270, 520 MHz CPU
• Windows CE 5.0
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• 3 I/O Slots
• IP65 Compliant Front Panel
• 3.5”TFT LCD
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Audio with Microphone-In and Earphone-Out
Introduction

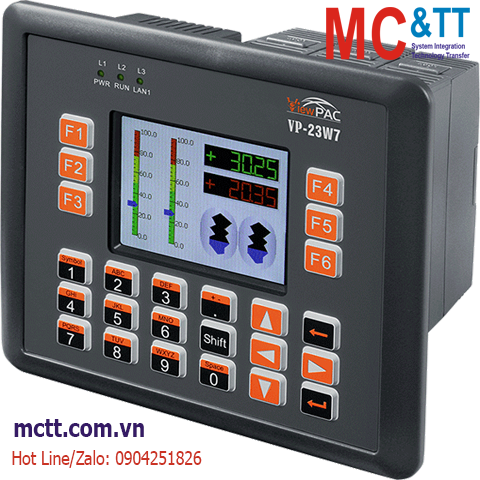

The ISaGRAF WinCE ViewPAC VP-23W7 is the new generation WinCE 5.0 based ISaGRAF PAC (Programmable Automation Controller) from ICP DAS. Each VP-23W7 is equipped with a PXA270 CPU (520 MHz) running a Windows CE 5.0 operating system, a variety of input/output ports (USB, Ethernet, RS-232/485), 3 I/O slots that can be used to integrate high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series), and a 3.5”TFT LCD with a rubber keypad Touch LCD.
The benefits of running Windows CE 5.0 on a WinPAC device include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. WinPAC devices are also capable of running ISaGRAF and PC-based control software, such as Visual Basic .NET, Visual C#, etc., providing all of the best features of both traditional PLCs and Windows capable PCs.
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
Win-GRAF would be a better choice for users.
The ViewPAC Series VP-2xW7/4xx7 support eLogger HMI:
Application
Specifications
| Software |
| OS |
Windows CE 5.0 |
| Protocol |
• NET ID
• Modbus TCP/IP Master
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• Modbus TCP/IP Slave
• Web HMI Protocol
• User-defined Protocol
• I-7000 & I-87K RS-485 Remote I/O
• M-7000 Series Modbus I/O
• Modbus TCP/IP I/O
• FRnet I/O
• Send Email
• Ebus
• SMS
• MMICON/LCD
• UDP Server & UDP Client
• TCP Client
• GPRS/SMS
• SQL Client
• Hot-Swap and Redundant System
• CAN/CANopen
• CANopen Master
• HART Solutions
• FTP Client
• eLogger HMI |
| Development |
Embedded ISaGRAF SoftLogic (IEC 61131-3) |
| Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplifi ed Chinese, Traditional Chinese |
| SDK |
Dll for eVC, Dll for Visual Studio.Net 2005/2008 |
| Main Unit |
| CPU |
PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
128 MB SDRAM |
| Storage |
96 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
16 KB EEPROM, 512 KB Dual battery backup SRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Type |
LCD |
| Size |
3.5" (4:3) |
| Backlight Life |
20,000 hours |
| Brightness |
220 cd/m2 |
| Resolution |
320 x 240 |
| Touch Panel |
4-wire, resistive type |
| LED Indicators |
| Status |
1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
3 |
| COM Ports |
| Ports |
1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes, (0 ~ 9) |
| Rubber Keypad |
24 keys |
| Audio |
| Jack |
Microphone-In and Earphone-Out |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB |
| Ports |
1 x USB 1.1 (host) |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Consumption |
7.2 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
182 x 158 x 125 (W x L x H) |
| Installation |
Panel Mounting |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Weight |
1.5 Kg |
| Environment |
| Operating Temperature |
-20 ~ +70°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
5 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| VP-23W7-EN CR |
ISaGRAF based ViewPAC with 3.5" LCD and 3 I/O slots (OS: Multilanguage) (RoHS) |
