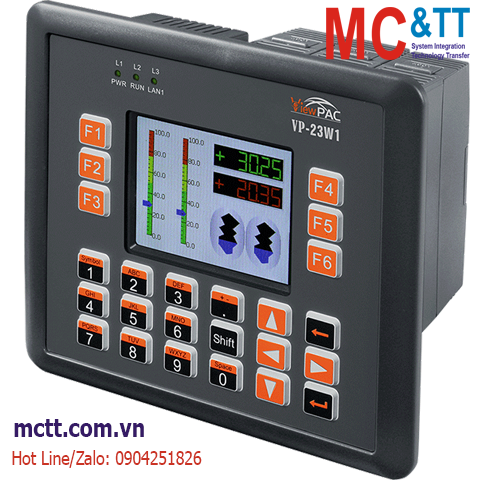

Màn hình cảm ứng lập trình nhúng ViewPAC 3.5 inch CPU PXA270+ WinCE 5.0 ICP DAS VP-23W1-EN CR
Mã hàng dừng sản xuất, thay thế và nâng cấp thành VP-1231-CE7
Features
• PXA270, 520 MHz CPU
•3.5" TFT LCD with Touch Panel
• Windows CE 5.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 128 MB SDRAM and 96 MB Flash
‣ 16 KB EEPROM for data retention
‣ 512 KB Battery-backup SRAM for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 1 x 10/100BASE-T Ethernet Port
‣ 2 x Serial Ports (RS-232/485)
‣ 1 x USB 2.0 (host)
• Rubber Keypad with 24 Keys
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 3 x I/O Expansion Slots
• 3 x LED Indicators
• Audio with Microphone-in and Earphone-out
• Built-In dual Watchdog Timer
• IP65 Compliant Front Panel
• Operating Temperature: -20 ~ +70 °C
Introduction
VP-23W1-EN combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5" TFT LCD and a rubber keypad. Its operating system, Windows CE.NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Running Windows CE.NET 5.0 in the ViewPAC gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC etc. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Application
https://mctt.vn/wince-viewpac-icp-das
Specifications
| Software |
| OS |
Windows CE .NET 5.0 |
| Service |
FTP Server, Web Server (supports VB script, JAVA script), Embedded SQL Server |
| Framework Support |
.Net Compact Framework 2.0 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit |
| CPU |
PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
128 MB SDRAM |
| Storage |
96 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
16 KB EEPROM, 512 KB Dual battery backup SRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Type |
LCD |
| Size |
3.5" (4:3) |
| Backlight Life |
20,000 hours |
| Brightness |
220 cd/m2 |
| Resolution |
320 x 240 |
| Touch Panel |
4-wire, resistive type |
| LED Indicators |
| Status |
1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
3 |
| COM Ports |
| Ports |
1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Rubber Keypad |
24 Keys |
| Audio |
| Jack |
Microphone-In and Earphone-Out |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB |
| Ports |
1 x USB 1.1 (host) |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Consumption |
7.2 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
182 x 158 x 125 (W x L x H) |
| Installation |
Panel mounting |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Weight |
1.5 Kg |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
5 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| VP-23W1-EN CR |
3.5" Standard ViewPAC with PXA270 CPU, WinCE 5.0 and 3 I/O Slots (RoHS) (Multilanguage Version) |
