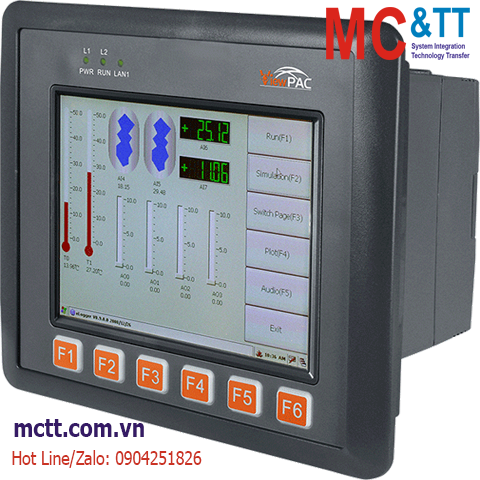

Màn hình cảm ứng lập trình nhúng ViewPAC 5.7 inch CPU Cortex-A8+ WinCE 7.0 ICP DAS VP-1231-CE7 CR
Features
• Cortex-A8, 1 GHz CPU
• 5.7" TFT LCD with Touch Panel
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 512 MB SDRAM and 256 MB Flash
‣ 16 KB EEPROM and 128 KB MRAM for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 1 x 10/100/1000BASE-T Ethernet Port
‣ 2 x Serial Ports (RS-232/485)
‣ 1 x USB 2.0 (host)
• Rubber Keypad with 6 Keys
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 3 x I/O Expansion Slots
• 3 x LED Indicators
• Audio with Microphone-in and Earphone-out
• Built-In dual Watchdog Timer
• IP65 Compliant Front Panel
• Operating Temperature: -20 ~ +70 °C
Introduction
The VP-1231-CE7 are CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU, TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Local I/O slots are available to use our I-8K and I-87K series I/O modules and remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed to operate over a wide -10 °C to 60 °C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Windows Embedded Compact 7 is a componentized, hard real-time, high performance, and highly reliable operating system. CE7 delivers rich user experiences and a unique connection to Windows PCs, servers, services, and devices.
Application
https://mctt.vn/wince-viewpac-icp-das
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Service |
FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
512 MB SDRAM, 256 MB Flash |
| Storage |
4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Type |
TFT LCD |
| Size |
5.7" (4:3) |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Resolution |
640 x 480 |
| Touch Panel |
4-wire, resistive type; light transmission: 80 % |
| Color |
16 bit RGB, 64 K full Colors |
| LED Indicators |
| Status |
1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
3 |
| COM Ports |
| Ports |
1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Rubber Keypad |
6 Keys |
| Audio |
| Jack |
Microphone-In and Earphone-Out |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Consumption |
0.3 A @ 24 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
182 x 158 x 125 (W x L x H) |
| Panel Cut-Out (mm) |
153 x 136, ±1 (W x H) |
| Installation |
Panel mounting |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Weight |
1.5 Kg |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| VP-1231-CE7 CR |
5.7" Standard ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots (RoHS) |
