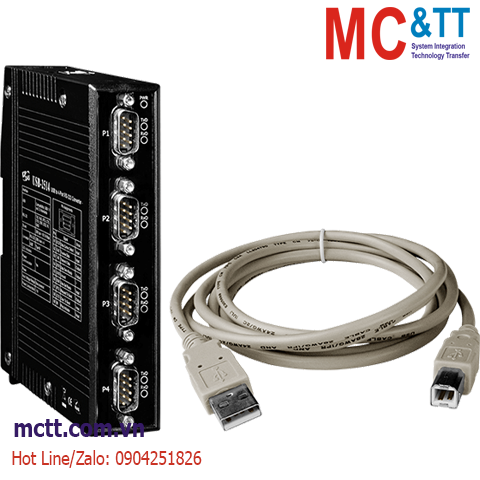

Bộ chuyển đổi USB sang 4 cổng COM RS-232 ICP DAS USB-2514 CR
Feature
- Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
- Power and data flow indicator for troubleshooting
- Driver Supports Windows 98/ME/2000/XP/Vista(32/64-6 bit)/7(32/64-bit)/8 (32/64-bit)/10/Linux
Introduction
USB-2514 is USB to 4-Port RS-232 converter that provides a simple way add up to four RS-232 ports on your PC. The USB-2514 is support USB 1.1, USB 2.0 standards and easy setting RS-232 transmission speed from 300 bps to 921600 bps.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
4 x RS-232 |
| Baud Rate |
300 bps ~ 921600 bps |
| USB |
| Specification |
Compatibility: USB 1.1 and 2.0 standards |
| Connector |
Type B |
| Power |
| Input Range |
Bus-powered |
| Consumption |
1 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
31 x 157 x 116 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| USB-2514 CR |
USB to 4-port RS-232 Converter (RoHS) |
