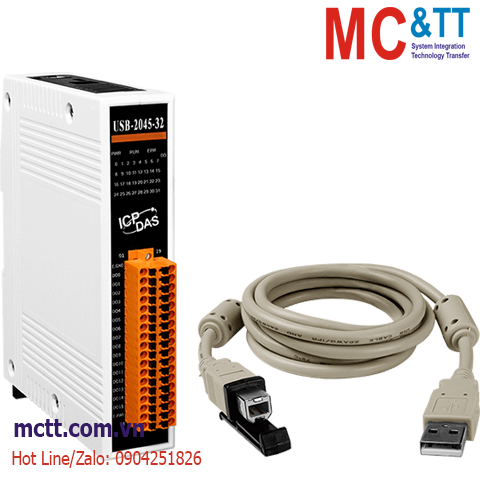

Module USB 32 kênh DO ICP DAS USB-2045-32 CR
Feature
• 32-channel sink type digital output
• Short Circuit, Overload and Overvoltage Protection
• Configurable Power-on Value Settings
• Safety functionality when communication failed
• No external power supply (USB Bus Powered)
• Plug-and-Play without driver
• Lockable USB cable
• Support firmware update via USB
• Utility tool for module configuration and I/O testing easily and quickly
• Provide API library (VB/C++/C#.NET/VB.NET/LabVIEW)
• Module supported for Win2000/XP , Win7/8/10/11 (32/64 bit) and Linux (32/64 bit)
Introduction
The USB-2045-32 is a full-speed USB I/O device with 32 digital output channels module. In addition, The USB-2045-32 also offers 32 LED indicators that can be used to monitor the status of the digital output channels. Dual watchdog function that provided with configurable power-on and safe values ensures the device operates continuously, even in harsh environments.
We also provide API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2045-32 is the perfect choose for you to implement I/O expansion via a plug-and-play USB interface.
Application
• Automation
• Measurement and testing
• Laboratory research
Specifications
| CPU Module |
| Watchdog Timer |
1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable) |
| EMS Protection |
| ESD (IEC 61000-4-2) |
4 kV contact for each terminal
8 kV air for random point |
| LED Indicators |
| Status |
3 x Power and Communication
32 x Digital Output |
| Digital Output |
| Channels |
32 |
| Type |
Open Collector, Sink (NPN) |
| Load Voltage |
+3.5 ~ +50 VDC |
| Load Current |
500 mA/Channel |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.4 A (with short-circuit protection) |
| Power on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| USB |
| Specification |
USB 2.0 Full-Speed (12Mbps) |
| Mechanical |
| Dimensions (mm) |
31 x 147 x 126 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| USB-2045-32 CR |
USB I/O Module with 32-ch DO (Sink, NPN) with Overload Protection (RoHS)
Includes 1.5M USB Cable (CA-USB15) |
