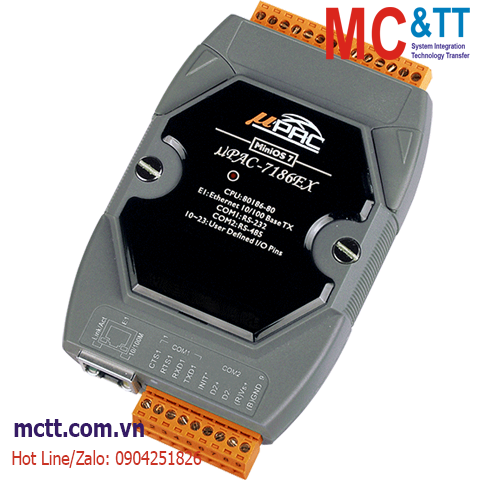

Bộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 ICP DAS uPAC-7186EX-G CR

Bộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 ICP DAS uPAC-7186EX-G CR

Features

• • Built-in High-Performace MiniOS7 from ICP DAS
  • Easy-to-use Software Development Tool Kits (Using C language)
  • Various Storage Media
        ‣ 512 KB Flash
        ‣ 16 KB EEPROM
  • Various Communication Interfaces
        ‣ 10/100 Base-TX Ethernet
        ‣ RS-232/RS-485
  • 64-bit Hardware Serial Number
  • I/O Expansion Bus Interface
  • Build-in Watchdog Timer

Introduction

The uPAC-7186EX-G is a palm-size programmable automation controller with RS-232/485 and Ethernet communication interfaces. ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

For hardware expansion, the uPAC-7186EX-G also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 50 boards available for uPAC-7186EX, you can choose one of them to expand hardware features.

Application

https://mctt.vn/upac-7186-i-7188-icp-das

Specifications

Download

Datasheet

Documents

Ordering Information
