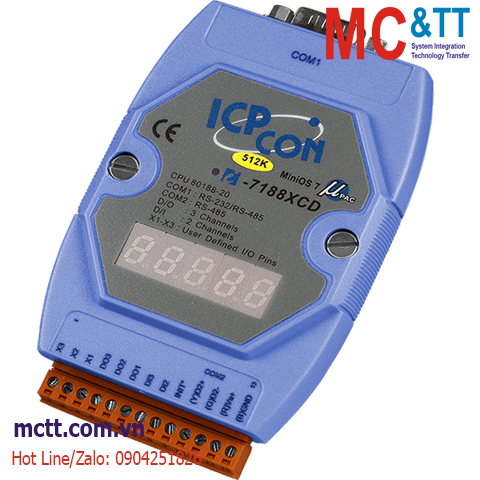

Bộ lập trình nhúng MiniOS7 PAC với CPU 80188-20 ICP DAS I-7188XCD-512/RTC CR
Features
• Built-in High Performance MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Storage Media
‣ 512 KB Flash
‣ 2 KB EEPROM
• Various Communication Interfaces
‣ RS-232
‣ RS-485
• Built-in Digital Input/Output
‣ 2 Dry Contact Inputs
‣ 3 Open-collector outputs
• I/O Expansion Bus Interface
• 5-Digital 7-SEG LED Display
• Programmable LED Indicator
• Build-in Watchdog Timer
Introduction
The I-7188XCD-512/RTC is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188XCD-512/RTC controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.
The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188XCD-512/RTC controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product. Depending on the type of embedded firmware programs that are being developed, and which I/O Expansion Board, the I-7188XCD-512/RTC can be used as a single versatile controller.
Application
https://mctt.vn/upac-7186-i-7188-icp-das
Specifications
| Software |
| OS |
MiniOS7 |
| Development |
C Language |
| CPU Module |
| CPU |
80188, 20 MHz or compatible |
| EEPROM |
2 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
128 KB |
| Real Time Clock |
Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
1 x System |
| Digital Input |
| Channels |
2 |
| Type |
Dry Contact |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Digital Output |
| Channels |
3 |
| Type |
Open Collector |
| Load Voltage |
+30 VDC max. |
| Load Current |
100 mA |
| I/O Expansion |
| I/O Type |
X-board |
| COM Ports |
| Ports |
1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate |
115200 bps Max. |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
3.0 W |
| Mechanical |
| Dimensions (mm) |
72 x 119 x 33 (W x H x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
5 ~ 90 %, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7188XCD-512/RTC CR |
Ethernet PAC with 80188-20 CPU, MiniOS7, 512KB SRAM, RTC, 2 Serial Ports, 2 DI, 3 DO and 1 I/O Bus (Blue Cover) (RoHS) |
