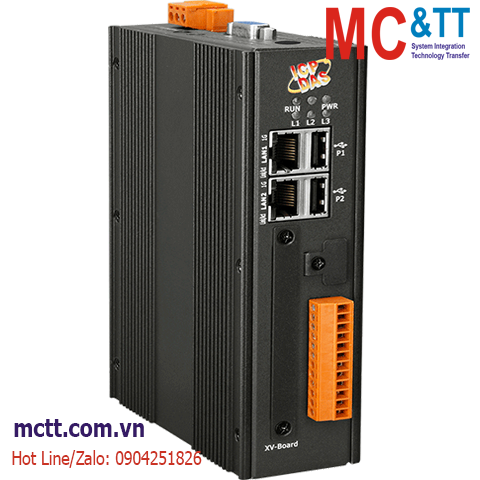

Bộ truyền thông IoT Gateway (IIoT Communication Server) ICP DAS UA-2841M CR
Feature
• OPC UA Server
• MQTT Client Service
• MQTT Broker Inside (non-SSL & SSL/WebSocket)
• Support to Execute OPC UA and MQTT Communication at the Same Time
• Provide Modbus TCP/Serial Master communication protocol
• Support Local Data Logger / Remote Database
• Support IFTTT Logic Control & APP Notify
• Support PID Logic Operation
• Support SNMP, RESTful Communication
• ARM Quad-Core CPU, 1.6 GHz
• 2 GB RAM and 8 GB eMMC Flash
• 2 x 10/100/1000 Mbit/s Ethernet Port
• 4 Serial Ports (RS-232/RS-485)
Introduction
UA-2841M is an IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services. Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database (MS SQL / MySQL / MariaDB), and save to the local fi le (.csv) as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive fi rst-hand notifi cation messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.
Application
• Industrial IoT communication protocol conversion
• IT communication protocol conversion
• Local and remote database records
Click to view the Applications of IIoT Cloud Solution.
Specifications
| Data Logger |
| Local Data Logger |
Record I/O data, and save to the local MicroSD card or SSD in CSV format. |
| Remote Database |
Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB.
Recommend Max. 2 Databases per Time, Max. 1000 Tags per database connection. |
| Software |
| OS |
Linux Kernel 5.10.72 |
| Protocol |
· OPC UA Server
· MQTT Broker
· MQTT Client
· Modbus TCP Master
· Modbus RTU/ASCII Master
· EtherNet/IP Scanner
· SNMP
· RESTful |
| Function |
· Internal Module
· PID Function |
| IoT Service Integration |
· Microsoft Azure
· Amazon Web Services
· IBM Bluemix
· IFTTT |
| Main Unit |
| CPU |
ARM Quad-Core CPU, 1.6 GHz |
| System Memory |
DDR4 SDRAM 2 GB |
| Storage |
Flash 8 GB
microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card or 2 TB microSDXC card)
mini PCIe Socket, Solid-state drive (SSD) can be expanded by accessories |
| Non-Volatile Memory |
FRAM 64 KB
MRAM 128 KB |
| Real Time Clock |
Provide second, minute, hour, date, day of week, month, year |
| Display |
| Signal |
VGA (Analog RGB), reserved |
| LED Indicators |
| Status |
1 x PWR
1 x RUN
3 x User Defined LEDs |
| I/O Expansion |
| I/O Type |
1, for one optional XV-board (Support XV511i to expand 4 RS-485 ports) |
| COM Ports |
| Ports |
1 x RS-232 (console)
1 x RS-232
2 x RS-485 (2500VDC Isolated) |
| HMI |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX |
| USB |
| Connector |
2 x 2.0 host |
| Power |
| Input Range |
+12 ~ +48 VDC |
| Consumption |
10 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
42 x 164 x 129 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +80°C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| UA-2841M CR |
IIoT Communication Server (Metal), with Quad-core ARM CPU and 2 Ethernet
Ports (RoHS) |
