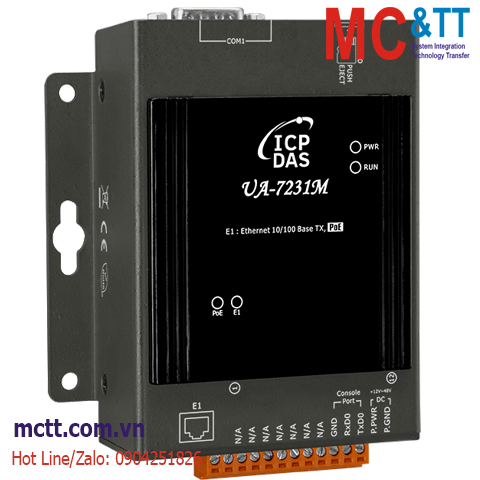

Bộ truyền thông IoT Gateway (IIoT Communication Server) ICP DAS UA-7231M CR
Feature
• OPC UA Server
• MQTT Client Service
• MQTT Broker Inside (non-SSL & SSL/WebSocket)
• Support to Execute OPC UA and MQTT Communication at the Same Time
• Provide Modbus TCP/Serial Master communication protocol
• Support Local Data Logger / Remote Database
• Support IFTTT Logic Control & APP Notify
• Support PID Logic Operation
• ARM CPU, 1.0 GHz
• 512 MB RAM and 8 GB Flash
• 1 x 10/100 Mbit/s Ethernet Port
• 1 Serial Port (RS-232/485, Isolated)
Introduction
UA-7231M is a series of IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/ RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services (Support to execute OPC UA and MQTT communication at the same time). Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database, and save to the local file as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive first-hand notification messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT
Application
• Industrial IoT communication protocol conversion
• IT communication protocol conversion
• Local and remote database records
Click to view the Applications of IIoT Cloud Solution.
Specifications
| Data Logger |
| Local Data Logger |
Record I/O data, and save to the local MicroSD card in CSV format. |
| Remote Database |
Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB.
Recommend Max. 1 Database per Time, and Max. 1000 Tags. |
| Software |
| OS |
Linux Kernel 3.2.14 |
| Protocol |
· OPC UA Server
· MQTT Broker
· MQTT Client
· Modbus TCP Master
· Modbus RTU/ASCII Master
· EtherNet/IP Scanner |
| Function |
· PID Function
· Internal Module |
| IoT Service Integration |
· Microsoft Azure
· Amazon Web Services
· IBM Bluemix
· IFTTT |
| Main Unit |
| CPU |
ARM CPU, 1.0 GHz |
| System Memory |
DDR3 SDRAM 512 MB |
| Storage |
Flash eMMC 8 GB
microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory |
FRAM 64 KB |
| Real Time Clock |
Provide second, minute, hour, date, day of week, month, year |
| LED Indicators |
| Status |
1 x PWR
1 x RUN
1 x Ethernet
1 x PoE |
| COM Ports |
| Ports |
1 x 5-wire RS-232/485 (COM1) |
| Bias Resistor |
Switch-selectable (1 kΩ for RS-485, Non-Resistor for RS-232) (COM1 DIP Switch) |
| Terminal Resistor |
Switch-selectable (120 Ω, Enable/Disable) (COM1 DIP Switch) |
| Isolation |
Isolated |
| HMI |
| DIP Switch |
1 x 9 Position (1 ~ 8, ON) (System Boot DIP Switch) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| PoE |
PoE (IEEE 802.3af, Class 1) |
| Power |
| Input Range |
+12 ~ +48 VDC |
| Consumption |
3.5 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
97 x 114 x 38 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +80°C |
| Humidity |
5 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| UA-7231M CR |
IIoT Communication Server with 1 PoE Ethernet Port and 1 Serial Port (Metal Case) (RoHS) |
