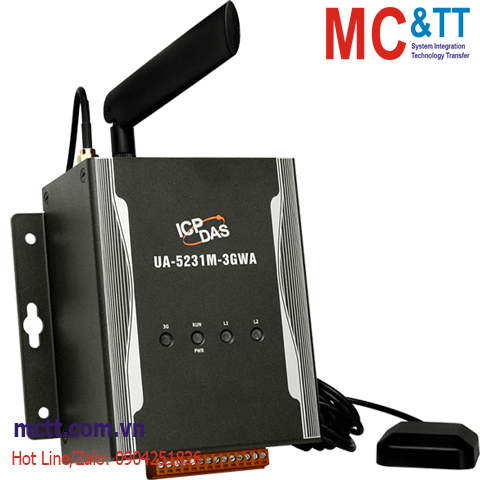

Bộ truyền thông IoT Gateway (IIoT Communication Server) + WCDMA (3G) ICP DAS UA-5231M-3GWA CR

Chia sẻ:
Mã sản phẩm: UA-5231M-3GWA
Thương hiệu: ICP DAS
Tình trạng:

IIoT Communication Server with 1 Ethernet Port, 3G Communication

Liên hệ
Mô tả

Bộ truyền thông IoT Gateway (IIoT Communication Server) + WCDMA (3G) ICP DAS UA-5231M-3GWA CR

Feature

• OPC UA Server
• MQTT Client Service
• MQTT Broker Inside (non-SSL & SSL/WebSocket)
• Support to Execute OPC UA and MQTT Communication at the Same Time
• Provide Modbus TCP/Serial Master communication protocol
• Support Local Data Logger / Remote Database
• Support IFTTT Logic Control & APP Notify
• Support PID Logic Operation
• ARM CPU, 1.0 GHz
• 512 MB RAM and 8 GB Flash
• 1 x 10/100/1000 Mbit/s Ethernet Port
• 4 Serial Ports (RS-232/RS-485)

Introduction

UA-5200 Series is a series of IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/ RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services (Support to execute OPC UA and MQTT communication at the same time). Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database, and save to the local file as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive first-hand notification messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.

Application

• Industrial IoT communication protocol conversion
• IT communication protocol conversion
• Local and remote database records

Click to view the Applications of IIoT Cloud Solution

Specifications

Data Logger
Local Data Logger Record I/O data, and save to the local MicroSD card in CSV format.
Remote Database Record I/O data, and send to the remote database of MS Recommend Max. 1 Database per Time, and Max. 1000 Tags.
Software
OS Linux Kernel 3.2.14
Protocol · OPC UA Server
· MQTT Broker
· MQTT Client
· Modbus TCP Master
· Modbus RTU/ASCII Master
· EtherNet/IP Scanner
Function · PID Function
· Internal Module
IoT Service Integration · Microsoft Azure
· Amazon Web Services
· IBM Bluemix
· IFTTT
Main Unit
CPU ARM CPU, 1.0 GHz
System Memory DDR3 SDRAM 512 MB
Storage Flash eMMC 8 GB
microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
Non-Volatile Memory FRAM 64 KB
Real Time Clock Provide second, minute, hour, date, day of week, month, year
Display
Signal VGA (Analog RGB), reserved
LED Indicators
Status 1 x PWR/RUN
2 x User Defined LEDs
1 x 3G
3G System
Data Transmission Rate WCDMA / HSPA+; Download: Max. 14.4Mbps; Upload: Max 5.76Mbps
Frequency Band WCDMA 850/900/1900/2100 MHz
COM Ports
Ports 1 x RS-232 (console)
1 x RS-232
2 x RS-485 (2500VDC Isolated)
HMI
Rotary Switch 1 x 10 Position (0 ~ 9)
Ethernet
Ports 1 x RJ-45, 10/100/1000 Base-TX
USB
Connector 1 x 2.0 host
Power
Input Range +12 ~ +48 VDC
Consumption 6.5 W
Mechanical
Casing Metal
Dimensions (mm) 117 x 126 x 58 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -40 ~ +80°C
Humidity 10 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

UA-5231M-3GWA     CR  IIoT Communication Server with 1 Ethernet Port, 3G Wireless Communication (Metal Case) (RoHS)
