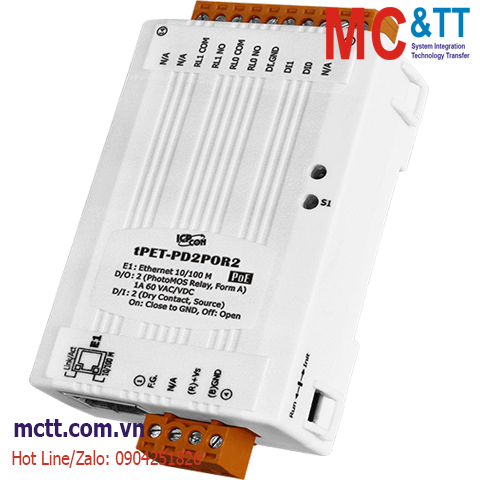

Module PoE Ethernet Modbus TCP 2 kênh DI + 2 kênh PhotoMOS Relay ICP DAS tPET-PD2POR2 CR
Features
- Built-in Web Server
- Cost-effective Tiny Ethernet I/O Modules
- Support Modbus TCP/UDP and MQTT Protocols
- I/O Pair Connection (Push and Pull)
- Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
- Supports Dual-watchdog
- Supports Web Configuration and Firmware Update Via Ethernet
- Supports Latched DI, 32-bit DI Counters, and Frequency Measurement
Introduction
Providing various digital I/O functions, the tET/tPET series is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP protocol. Modbus has become a de facto standard communications protocol in industry and is now the most commonly available means of connecting industrial electronic devices. This makes the tET/tPET series perfect integration with the HMI, SCADA, PLC, and other software systems.
The functionality of the tET/tPET series is almost the same as the ET-7000/PET-7000 series. The tET/tPET series tiny Ethernet I/O modules support various I/O types, like photo-isolated digital input, relay contact, photoMOS relay, and open-collector output. The module can be used to create DI to DO pair-connect through the Ethernet. Once the configuration is completed, the tET/tPET series module can poll the status of local DI channels and then use the Modbus/TCP protocol to continuously write to a remote DO device in the background.
The tET/tPET series provides a dual watchdog: CPU watchdog and host watchdog. The CPU watchdog automatically resets itself when the built-in firmware runs abnormally. The host watchdog monitors the host controller (PC or PLC), and the output of the module can go to a predefined state (safe value) when the host fails.
For maximum space savings, the tET/tPET series is offered in an amazing tiny form factor that makes it can be easily installed anywhere, even directly embedded into a machine. It is equipped with two removable terminal block connectors for easy wiring and features a powerful 32-bit ARM MCU to handle efficient network trafficking. The tPET series offers true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. When there is no PoE switch on site, the tPET series accepts power input from the DC adapter.
Applications
Specifications
| CPU Module |
| CPU |
32-bit MCU |
| Watchdog Timer |
Module, Communication (Programmable) |
| LED Indicators |
| Status |
Run, Ethernet, PoE |
| Digital Input/Counter |
| Channels |
2 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Max. Counts |
4,294,967,295 (32-bit) |
| Frequency |
3.5 kHz (without filter) |
| Min. Pulse Width |
0.15 ms |
| Effective Distance |
500m (max.) |
| Isolation |
3750 Vrms |
| Relay Output |
| Channels |
2 |
| Type |
PhotoMOS Relay, Form A |
| Contact Rating |
60V/1.0A (Operating Temperature -25 to +40°C)
60V/0.8A (Operating Temperature +40 to +60°C)
60V/0.7A (Operating Temperature +60 to +75°C) |
| Operate Time |
1.3 ms (Typical) |
| Release Time |
0.1 ms (Typical) |
| Electrical Endurance |
Long Life and No Sparking |
| Isolation |
3000 Vrms |
| Ethernet |
| Ports |
10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| Power |
| Consumption |
1.0 W |
| Powered from PoE |
IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
+12 to +48 VDC |
| Mechanical |
| Dimensions (mm) |
52 x 95 x 27 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 to +75 °C |
| Storage Temperature |
-30 to +80 °C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| tPET-PD2POR2 CR |
Tiny PoE Ethernet Module with 2-ch Dry Contact DI and 2-ch PhotoMOS Relay (RoHS) |
