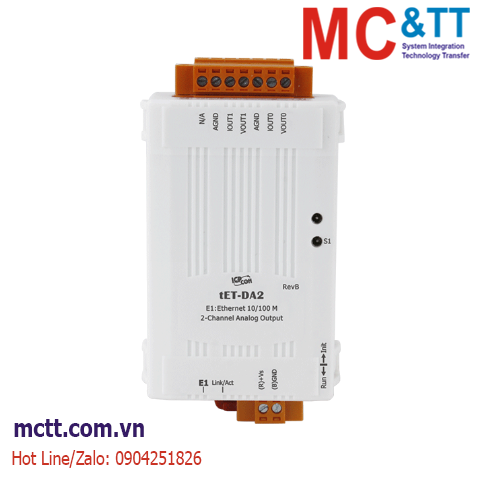

Module Ethernet Modbus TCP 2 kênh đầu ra AO ICP DAS tET-DA2 CR
Features
- Web Server for Configuration
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- I/O Pair Connection (Push and Pull)
- Supports Dual-watchdog
- Supports Firmware Update via Ethernet
- Built-in I/O
- 2-channel Outputs
- Voltage Outputs and Current Outputs
Introduction
The tET-DA2/tPET-DA2 is an analog output module that includes 2 analog output channels and provides a programmable output range on all analog outputs (0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA). It provides 4 kV ESD protection as well as 3000 VDC intra-module isolation.
Applications
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor fabrication
- Control Systems
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| CPU |
32-bit MCU |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
Run, Ethernet |
| Analog Output |
| Channels |
2 |
| Type |
Voltage, Current |
| Range |
Voltage: 0 ~ 10 V
Current: 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Programmable Output Slope |
Voltage: 0.0625 ~ 512 V/Second
Current: 0.125 ~ 1024 mA/Second |
| Open Wire Detection |
For 4 to 20 mA only |
| Voltage Output Capability |
10 V @ 10 mA |
| Current Load Resistance |
500 Ω |
| Individual Channel Configuration |
Yes |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-Tx |
| Access Control |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
2.1 W |
| Powered from PoE |
IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
+12 to +48 VDC |
| Mechanical |
| Dimensions (mm) |
52 x 96 x 27 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| tET-DA2 CR |
Tiny Ethernet Module with Isolated 2-ch AO (RoHS) |
