Module PoE Ethernet Modbus TCP 2 kênh DI + 2 kênh Power Relay ICP DAS tPET-P2R2 CR

Chia sẻ:
Mã sản phẩm: tPET-P2R2
Thương hiệu: ICP DAS
Tình trạng:

Tiny PoE Ethernet Module with 2-ch Wet Contact DI and 2-ch Power Relay

Liên hệ
Mô tả

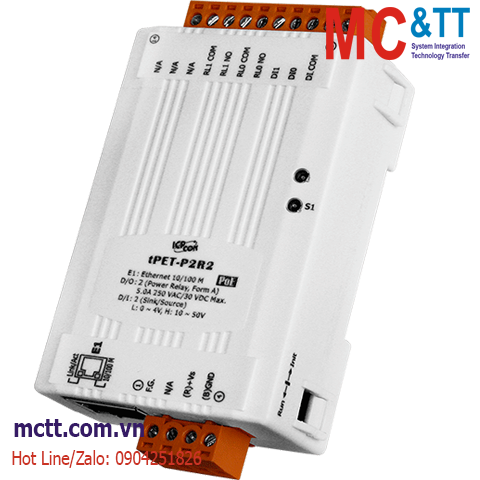

Module PoE Ethernet Modbus TCP 2 kênh DI + 2 kênh Power Relay ICP DAS tPET-P2R2 CR

Features

  • Built-in Web Server
  • Cost-effective Tiny Ethernet I/O Modules
  • Support Modbus TCP/UDP and MQTT Protocols
  • I/O Pair Connection (Push and Pull)
  • Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • Supports Dual-watchdog
  • Supports Web Configuration and Firmware Update Via Ethernet
  • Supports Latched DI, 32-bit DI Counters, and Frequency Measurement

Introduction

Providing various digital I/O functions, the tET/tPET series is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP protocol. Modbus has become a de facto standard communications protocol in industry and is now the most commonly available means of connecting industrial electronic devices. This makes the tET/tPET series perfect integration with the HMI, SCADA, PLC, and other software systems.

The functionality of the tET/tPET series is almost the same as the ET-7000/PET-7000 series. The tET/tPET series tiny Ethernet I/O modules support various I/O types, like photo-isolated digital input, relay contact, photoMOS relay, and open-collector output. The module can be used to create DI to DO pair-connect through the Ethernet. Once the configuration is completed, the tET/tPET series module can poll the status of local DI channels and then use the Modbus/TCP protocol to continuously write to a remote DO device in the background.

The tET/tPET series provides a dual watchdog: CPU watchdog and host watchdog. The CPU watchdog automatically resets itself when the built-in firmware runs abnormally. The host watchdog monitors the host controller (PC or PLC), and the output of the module can go to a predefined state (safe value) when the host fails.

For maximum space savings, the tET/tPET series is offered in an amazing tiny form factor that makes it can be easily installed anywhere, even directly embedded into a machine. It is equipped with two removable terminal block connectors for easy wiring and features a powerful 32-bit ARM MCU to handle efficient network trafficking. The tPET series offers true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. When there is no PoE switch on site, the tPET series accepts power input from the DC adapter.

Applications

  • Factory, Building and Home Automation Remote Maintenance.

Specifications

CPU Module
CPU 32-bit MCU
Watchdog Timer Module, Communication (Programmable)
LED Indicators
Status Run, Ethernet, PoE
Digital Input/Counter
Channels 2
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +10 to +50 VDC
OFF Voltage Level +4 VDC (max.)
Max. Counts 4,294,967,295 (32-bit)
Frequency 3.5 kHz (without filter)
Min. Pulse Width 0.15 ms
Isolation 3750 Vrms
Input Impedance 10 kΩ
Overvoltage Protection +70 VDC
Relay Output
Channels 2
Type Power Relay, Form A (SPST N.O.)
Contact Rating 5.0 A/channel at 25°C
Operate Time 6 ms
Release Time 3 ms
Electrical Endurance 5 A 250 VAC 30,000 ops (10 ops/minute) at 75 °C
5 A 30 VDC 70,000 ops (10 ops/minute) at 75 °C
5 A 250 VAC/30 VDC 6,000 ops
3 A 250 VAC/30 VDC 100,000 ops
Mechanical Endurance 20,000,000 ops. At no load (300 ops./minute)
Isolation 3000 Vrms
Ethernet
Ports 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
Power
Consumption 1.0 W
Powered from PoE IEEE 802.3af, Class 1
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 52 x 95 x 27 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75 °C
Storage Temperature -30 to +80 °C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

tPET-P2R2     CR  Tiny PoE Ethernet Module with 2-ch Wet Contact DI and 2-ch Power Relay (RoHS)
