Switch công nghiệp EN50155 8 cổng Ethernet M12 3onedata TNS5000D-8T-P24

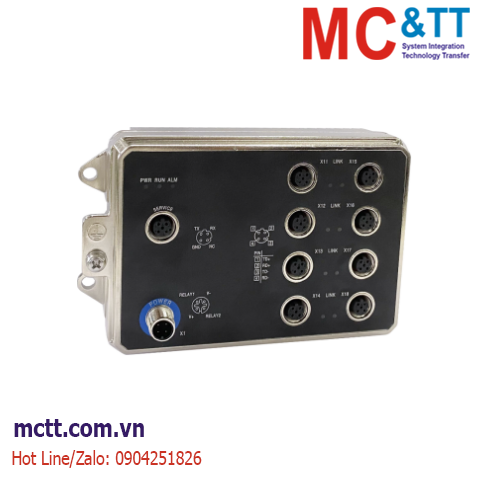

TNS5000D-8T is 8-port 100M layer 2 unmanaged industrial Ethernet switch designed for rail transit. It conforms to the EN50155 and EN50121 industry standard. Ethernet interfaces, power interface and SERVICE port use firm and reliable M12 connectors which can adapt to usage scenario with severe vibration and shock. This product provides 8 100M M12 interfaces, and it adopts wall mounting which can meet the requirements of different scenes.
When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It is designed for rail transit industrial and can be widely used in systems such as car PIS, CCTV, video monitoring and train control.
Tính năng
- Support 8 100M M12
- Support 110VDC (66~154VDC) or 24VDC(9~36VDC) power supply input
- Support -40~ 75℃ wide temperature operation
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow Control |
|
Interface |
Power supply interface: M12 A-Coded 4-Pin (male) connector, the power occupies 2 pins, V- and V+
Relay alarm interface (reserved): M12 (Male), 4-Pin A-Coded, relay occupies two pins, RELAY1 and RELAY2
100M Ethernet port: 10/100Base-T(X), M12(Female), 4-Pin D-Code, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Service port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Code, used by technicians for debugging |
|
Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 8K
Buffer: 1Mbit
Backplane bandwidth: 7.6G
Switch time delay: <10μs |
|
Power Supply |
110VDC (66~154VDC) or 24VDC (9~36VDC), M12 (Male), 4-Pin A-Coded |
|
Power Consumption |
Full-load: 3.8W@24VDC
No-load: 2.1W@24VDC |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Mechanical Structure |
Housing: IP65 protection, metal
Installation: wall/rail mounting
Dimension (W x H x D): 175mm×104mm×53.2mm
Weight: 0.642kg |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge:± 8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
Relay: ±2kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet interface: ±2kV
Relay: common mode ±2kV, differential mode±1kV
Shock: IEC 61373
Free fall: IEC 60068-2-32
Vibration: IEC 61373 |
|
Authentication |
CE, FCC, RoHS, REACH, EN50155, EN50121-3-2, EN50121-4, IEC61373, EN45545, Q/CR 699-2019, Q/CRRC J26-2018 |
|
Warranty |
3 years |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
|
Model |
100M M12 |
Power Supply |
| TNS5000D-8T-P110 |
8 |
110VDC(66~154VDC) |
|
TNS5000D-8T-P24 |
8 |
24VDC(9~36VDC) |
