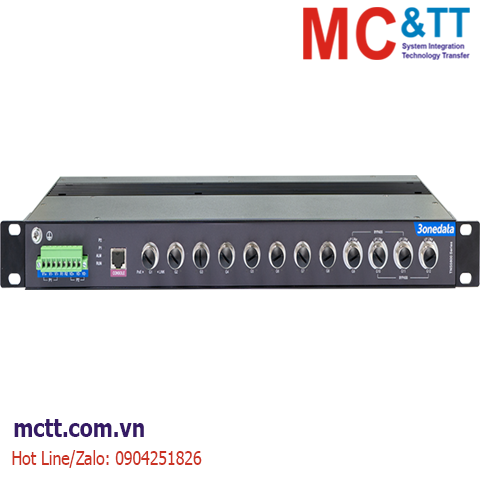

Switch công nghiệp Layer 3 EN50155 quản lý 16 cổng Gigabit PoE M12 + 4 cổng Gigabit Bypass M12 3onedata TNS5800-16P4GT-2P24

Chia sẻ:
Mã sản phẩm: TNS5800-16P4GT-2P24
Thương hiệu: 3onedata
Tình trạng:

12/20-Port Layer 3 EN50155 Industrial Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp Layer 3 EN50155 quản lý 16 cổng Gigabit PoE M12 + 4 cổng Gigabit Bypass M12 3onedata TNS5800-16P4GT-2P24

TNS5800 series belongs to layer 3 EN50155 industrial Ethernet switches. The product conforms to the requirements of industrial standard EN50155 and EN50121 Ethernet interfaces use firm and reliable M12 connectors which can adapt to usage scenario with vibration and shock. PoE power supply conforms to IEEE802.3af/at protocol standard, and it can power device over Ethernet, thus decreasing the cable connection of powered devices. This series has 5 products. They provide 110VDC power or 24VDC input and adopt rack-mounted installation, which can meet the needs of different application sites.

The network management system supports various network protocols and industry standards, such as static routing, RIP, OSPF, VRRP, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. This devices have passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in systems such as train network, signal, on-board PIS, CCTV.

Tính năng

  • Support 4 Gigabit M12 interfaces (with 2 groups of Bypass function), 8/16 100M or Gigabit PoE M12 interfaces (optional)
  • Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
  • Support 2 110VDC or 24VDC power supply inputs
  • Support IP40 protection grade
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1X for 802.1X Authentication

IEEE 802.1AB for LLDP

IEEE 802.3af for PoE

IEEE 802.3at for PoE+

ITU-T G.8032 for ERPS


SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics, Log Information, Static ARP, PoE Management


Classification of User Permissions, ACL, NAT, 802.1X Authentication, Radius Server Authentication, Port Alarm, Power Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, Loop Detection, Aggregation Protection, Link Flapping Protection, DHCP Snooping

Switch Function

802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation

Unicast / Multicast

Static Multicast, IGMP-Snooping, PIM-SM, PIM-SM

Redundancy Technology



Ping, Traceroute, Port Loopback

Routing Technique


Time Management



Gigabit PoE M12:10/100/1000base-T (X), M12 (Female), 8-Pin X-Coded, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 2 of PoE power supply are positive, while pin 3 and 4 are negative

Gigabit M12: 10/100/1000Base-T(X), M12(Female), 8-Pin X-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning;it supports two groups of Bypass

100M PoE M12:10/100base-T(X), M12 (Female), 4-Pin D-Coded, automatic flow control, full/half duplex mode, MDI/MDI-X automatic detection; The single port supports up to 30W PoE power supply output. Pin 1 and 3 of PoE power supply are positive, while pin 2 and 4 are negative

Alarm interface: 8-pin 5.08mm pitch terminal blocks (includes 2-pin relay) or 7-pin Male M23 interface (includes 2-pin relay), support 1 relay alarm output, the current load capability is 1A@30VDC or 0.3A@125VAC.

Console port: CLI command line management port(RS-232), RJ45


Power indicator, alarm indicator, running indicator, interface indicator, PoE indicator

Switch Property

Transmission mode: store and forward

MAC address: 16K

Packet buffer size: 12Mbit

Backplane bandwidth: 128G

Switch time delay: <10μs

Power Supply

TNS5800-8P4GT-2P110, TNS5800-8GP4GT-2P110:

Power supply range: 110VDC (66~156VDC), dual power supply redundancy

Connection method: 8-pin 5.08mm pitch terminal blocks (includes 6-pin power supply)

Connection protection: anti-reverse connection

TNS5800-16P4GT-2P110, TNS5800-16GP4GT-2P110:

Power supply range: 110VDC, dual power supply redundancy

Connection method: 7-pin Male M23 (includes 4-pin power supply)

Connection protection: anti-reverse connection

Power Consumption

Full load (no PoE load): < 20W

Full load (including PoE load): <120W

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: 1U rack mounting

Dimension (W x H x D): 482.6mm×44.45mm×200mm (lugs are included for 12-Port device)

441.6mm × 44.45mm × 290mm (no lugs for 20-Port device)

Industrial Standard

EN 50121-3-2: 2016 standard, Table 5.3 (Electrostatic Discharge), Class A

Air discharge:± 8kV

Contact discharge: ±6kV

EN 50121-3-2: 2016 standard, Table 3.3 (Surge), Class A

Power supply: common mode±2kV, differential mode±1kV

EN 50121-3-2: 2016 standard, Table 3.2 (Electrical Fast Transient Pulses), Class A

Power supply: ±2kV

Signal: ±2kV

EN 50121-3-2: 2016 standard, Table 5.1, 5.2 (Radio Frequency Electromagnetic), Class A

80MHz~800MHz, 20V/m

800MHz~1GHz, 20V/m

1.4GHz~2.0GHz, 10V/m

2.0GHz~2.7GHz, 5V/m

5.1GHz~6GHz, 3V/m

EN 50121-3-2: 2016 standard, Table 3.1, 4.1 (Conducted Disturbance Induced by RF Fields), Class A

Power supply: 0.15MHz~80MHz, 10V

Signal: 0.15MHz~80MHz, 10V

EN 50121-3-2: 2016 standard, table 3.1 (Power Supply Conducted Disturbance)

150kHz~500kHz, 79dBμV quasi-peak value

500kHz~30MHz, 73dBμV quasi-peak value

EN 50121-3-2: 2016 standard, table 3.1 (Radiation Disturbance)

30MHz~230MHz, <40dBμV/m quasi-peak value

230MHz~1GHz, <47dBμV/m quasi-peak value

Shock: IEC 61373

Free fall: IEC 60068-2-32

Vibration: IEC 61373


CE, FCC, RoHS, EN50155, EN50121-3-2, IEC61373


3 years



Quick Guide

Thông tin đặt hàng

Available Models

100M PoE M12

Gigabit PoE M12

Gigabit Bypass M12

Power Supply





redundant power supply














redundant power supply
