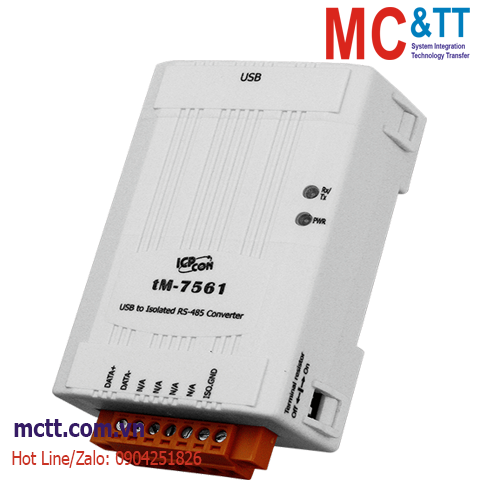

Bộ chuyển đổi USB sang RS-485 ICP DAS tM-7561 CR
Feature
- Fully Compliant with the USB 1.1/2.0 (High Speed)
- Power and data flow indicator for troubleshooting
- 2500 VDC Isolation Protection on the RS-485 side
- Driver Supports Windows 98/ME/2000/XP (32/64-bit)/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit)/10 (64-bit)/11 (64-bit)/Linux
- No External Power Supply required
- Automatic RS-485 Direction Control
- Low power consumption
- Tiny packaging fits on your DIN-Rail Mounting
Introduction
The tM-7561 is a cost-effective USB to RS-485 converter. Connecting the tM-7561 to a PC, you get one RS-485 port that allows you to access RS-485 devices through the USB interface. Like the I-7520, the tM-7561 contains "Self-Tuner" chip auto-tunes the baud rate and data format to the RS-485 network. The tM-7561 module derives its power from the USB port and doesn't need external power adapter.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
300 ~ 115200 bps |
| USB |
| Specification |
USB 1.1 and 2.0 standards |
| Connector |
Type B |
| Power |
| Input Range |
+5 VDC from USB |
| Consumption |
0.4 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
55 x 87 x 27 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| tM-7561 CR |
Tiny USB to Isolated RS-485 Converter with CA-USB18 Cable (RoHS) |
