Bộ lưu trữ Data Logger 8 kênh đo nhiệt độ Thermocouple K ICP DAS TCD-108/S400 CR

Chia sẻ:
Mã sản phẩm: TCD-108/S400
Thương hiệu: ICP DAS
Tình trạng:

8-ch K-type Thermocouple

Liên hệ
Mô tả

Bộ lưu trữ Data Logger 8 kênh đo nhiệt độ Thermocouple K ICP DAS TCD-108/S400 CR

Feature

  • 8-channel K-type thermocouple (± 0.5℃ Accuracy)
  • Thermocouple length: 50 cm
  • Sampling Rate: 50 ms to 60000 seconds
  • Max. recording for each channel: 300,000
  • Traceable temperature data
  • Easy-to-use software interface
  • Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)
  • 400℃ Operating Temperature with Thermal Insulation Box

Introduction

TCD-108 temperature measurement module can provide high-precision temperature measuring capability with standard K-type thermocouple. Besides, TCD-108 has built-in over-temperature protection, intelligent temperature data logging capability, automatic analysis result output (highest Tin temperature, tinning time, heating rate, etc.).

Application

SMD assembly manufacturing, PC board manufacturing, footware manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.

Specifications

LED Indicators
Status Log : Yellow for data logger
Power : Green for normal operation
Error : Red for error indicator
Temperature Measurement
Sensor Type K-Type
Channels 8
Range -270°C to 1372°C (-454°F to 2502°F)
Resolution 0.1ºC
Accuracy ±0.5ºC
System
Data Logger 300,000 records
USB
Specification USB 2.0 Full-Speed
Power
Consumption 0.06 W Max.
Battery Usage Life Operating for more than 60 hours with heavy-duty AAA battery x 4
Mechanical
Dimensions (mm) 104 x 169 x 21 (W x L x H)
Environment
Operating Temperature -40 to +400°C
Humidity 10 to 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

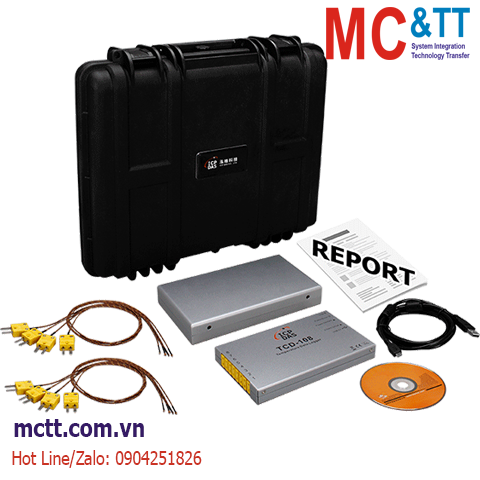

TCD-108/S400     CR  8-ch K type Thermocouple Data Logger Module for Portable Measurement up to 400℃ (RoHS)
Includes thermal insulation box and software.
