Bộ lưu trữ Data Logger 4 kênh đo nhiệt độ Thermocouple K ICP DAS TCD-104/S400 CR
Feature
- 4-channel K-type thermocouple (± 0.5℃ Accuracy)
- Thermocouple length: 50 cm
- Sampling Rate: 50 ms to 60000 seconds
- Max. recording for each channel: 450,000
- Traceable temperature data
- Easy-to-use software interface
- Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)
- 400℃ operating temperature with thermal insulation box
Introduction
TCD-104 temperature measurement module can provide high-precision temperature measuring capability with standard K-type thermocouple. Besides, TCD-104 has built-in over-temperature protection, intelligent temperature data logging capability, automatic analysis result output (highest Tin temperature, tinning time, heating rate, etc.).
Application
SMD assembly manufacturing, PC board manufacturing, footware manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.
Specifications
| LED Indicators |
| Status |
Log : Yellow for data logger
Power : Green for normal operation
Error : Red for error indicator |
| Temperature Measurement |
| Sensor Type |
K-Type |
| Channels |
4 |
| Range |
-270°C to 1372°C (-454°F to 2502°F) |
| Resolution |
0.1ºC |
| Accuracy |
±0.5ºC |
| System |
| Data Logger |
450,000 records |
| USB |
| Specification |
USB 2.0 Full-Speed |
| Power |
| Consumption |
0.06 W Max. |
| Battery Usage Life |
Operating for more than 60 hours with heavy-duty AAA battery x 4 |
| Mechanical |
| Dimensions (mm) |
104 x 169 x 21 (W x L x H) |
| Environment |
| Operating Temperature |
-40 to +400°C |
| Humidity |
10 to 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information

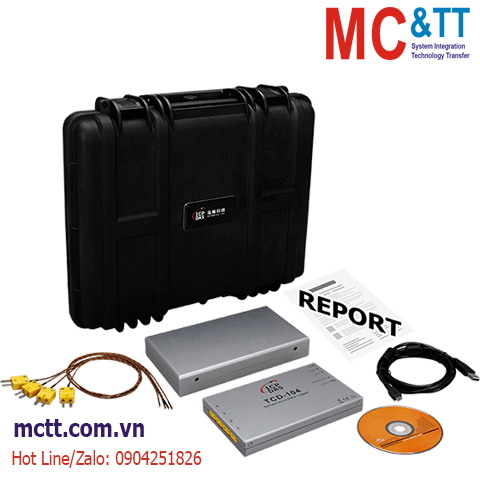

| TCD-104/S400 CR |
4-ch K type Thermocouple Data Logger Module for Portable Measurement up to 400℃. (RoHS)
Includes thermal insulation box and software. |
