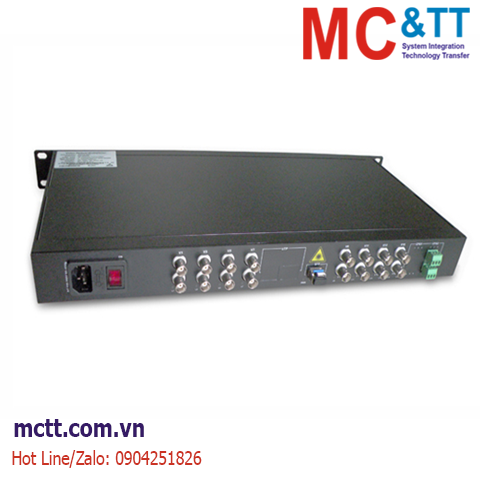

Bộ chuyển đổi 16 kênh Video quang 3Onedata SWV61600
3onedata digital video optical transceivers SWV61600 series can simultaneously transmit 16 channels of 8-bit digitally encoded broadcast quality video/return or bidirectional data/unidirectional or bidirectional audio/Ethernet/Telephone/Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.
Tính năng
- 8-bit digitally encoded and non-compression broadcast quality video transmission
- Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols
- Support any high-resolution video signal
- Automatic compatible PAL, NTSC and SECAM video system
- Power supply and other parameter state indication, which can monitor the operation condition of system
- Support no-damage regenerative trunk of video
- Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required
- Special ASIC design
- Industry-grade of operating temperature from -10°C to 65°C , which is applied to the different working environment
- Hot-swap function
- 19″1U rack-mount chassis
Thông số kỹ thuật
| Technical Specification |
Video channels：16 channels
Video bandwidth：8 MHz
Automatic compatible video system：PAL, NTSC, SECAM
Video input/output impedance：75 Ω(unbalance)
Video signal-to-noise ratio：≥67dB
Differential gain：(10%-90%APL) DG <1% ( typical value)
Differential phase：(10%-90%APL) DP <0.7° ( typical value)
Video connector：BNC |
| Fiber-optic |
F/O connector: SFP module
TX ：Power:-15 ~ -8dBm Sensitivity :≤-35dBm
RX：Power:-15 ~ -8dBm Sensitivity :≤-35dBm
Transmission Distance :2KM (Multi mode), 20KM (single mode)
Operating Wavelength: TX1310/RX1550nm (Transmitter); TX1550/RX1310nm (Receiver) |
| Data (Options) |
Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : 0 – 400Kbps
BER: ≤10-9 |
| Audio (Options) |
Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB (weighted) |
| Telephone (Options) |
Connector: RJ11
Bandwidth :8KHZ
Features：Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO |
| Ethernet (Options) |
Connector: RJ45
Support mode : Half duplex or Full duplex
Standards：IEEE802.3
Data rate : 10M / 100Mbps
Bandwidth: 25M |
| Characteristic |
Dimensions: 48.3(L)×22(W)×4.4(H) cm(19” 1U)
Operating Voltage: AC96-240V
Operating Temperature: -10°C to +65°C
Storing Temperature: -45°C to +85°C
Humidity: 0 to 95% non-condensing
MTBF: ≥10 5 hours |
Thông tin đặt hàng
| Model Number |
Product Configuration |
| SWV61600 |
16 channels video, SFP(1.25G), 85-260VAC |
| SWV61601 |
16 channels video + 1 channel reverse data, SFP(1.25G), 85-260VAC |
