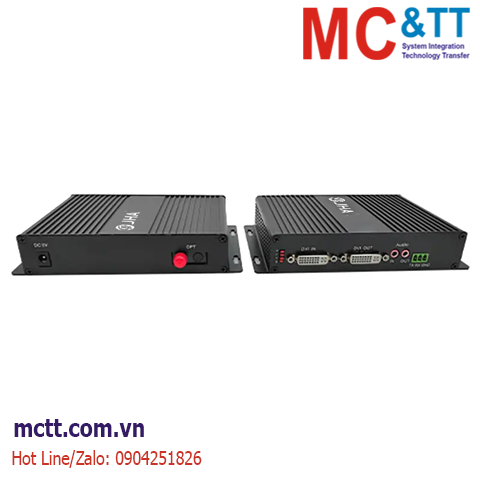

Bộ chuyển đổi 1 kênh DVI sang quang JHA TECH JHA-D100
The DVI to fiber optic converter consists of a dvi transmitter and receiver,which supports 1ch uncompressed high-definition dvi and 1 bidirectional stereo audio signals over one single-mode fiber. It has the advantages of long transmission distance (1-80km), frequency bandwidth, strong anti-interference performance, high safety performance, small size& light weight, which is suitable for long-distance transmission and special environment. This equipment is widely used in large-scale multimedia high-definition display, information release and news centers, traffic guidance and information display systems, outdoor large-screen display systems, large-scale stage display and entertainment centers, live television broadcasts, multimedia conferences, military command and exercises areas.
Tính năng
- DVI to fiber optic converter for 1 ch 1080P dvi&1 ch bidirectional stereo audio over single mode fiber
- DVI signals with digital uncompressed transmission;
- Support UXGA 1280 * 1024 /, HDTV 1080p 1920 * 1080 @ 60Hz resolution, maximum 1.65GHz bandwidth;
- LED status indicator for power, fiber, video etc;
- Advanced adaptive technology, no electro-optic adjustment when using;
- 3G fiber transmission technology, large capacity, easy to upgrade;
- Long distance transmission-single mode (0~80KM), multimode (0~300M)
- Aluminum alloy case for industrial harsh environments
- No software settings, support hot plug;
Thông số kỹ thuật
| Video |
| Physical Interface |
DVI-I 24+5 Male |
| DVI version |
DVI 1.2 |
| Video Format |
1080p 60/1080i/720p |
| Video Color Format |
24 bit / dark 30 bit / dark 36 bit |
| TMDS Input and output |
0.5~1.5Vp-p(TMDS) |
| DDC Input and output |
5Vp-p (TTL) |
| Input and output cable length |
≤ 5m |
| Optic |
|
| Fiber Interface |
FC(default),SC selectable |
| Fiber Type |
Singlemode(9/125μ single-mode,default),Multimode Selectable |
| Wavelength |
850nm,1310nm,1550nm |
| Distance |
0~10KM(SM),0~2000m(MM) |
| Number of Fibers |
1 |
| Transmission Rate |
3Gb/s |
| Average optical emission power |
-9.5~-3dBm |
| Average light receiving sensitivity |
-15dBm |
| Audio |
|
| Audio Format |
DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Quantization Level (digital width) |
20 bit |
| Sampling Frequency |
48KHz |
| Max input/output voltage |
2.0Vp-p |
| Bandwidth |
20Hz~20KHz |
| Frequency Response |
10 Hz~29kHz ±3dB |
| SNR |
> 85dB |
| Audio transmission format |
left and right stereo audio,3.5mm |
| Other |
| Power |
DC5V 2A |
| Power Consumption |
≤10W |
| Working Temperature |
0ºC ~55ºC |
| Storage Temperature |
-20ºC ~70ºC |
| Net Weight (pair) |
0.56Kg |
| Gross Weight(pair) |
1Kg |
| Dimension of Transmitter/Receiver |
170mm×128mm×28mm |
| Package size |
31.2×19×9cm |
| Installation |
Wall mount |
| MTBF |
≥ 30000Hours |
LED Status Indicators：
| Interface |
Transmitter and Receiver |
| DVI_IN/OUT |
DVI signal input/output port |
| OPT |
Fiber input port |
| AUDIO_IN/OUT |
Audio input/output port |
| DC-5V |
5V Power port |
| Indicator Light |
DVI Transmitter |
DVI receiver |
| F |
On |
Optical signal on |
| Off |
No optical signal |
| V |
On |
Video signal on |
| Off |
No Video Signal |
| P |
On |
Power on |
| Off |
Power off |
