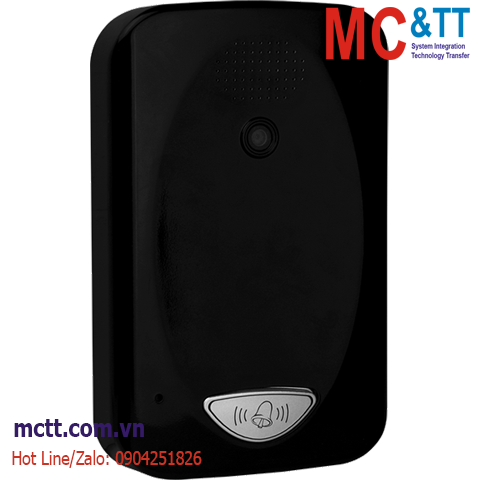

Trạm giao tiếp nội bộ qua video ICP DAS SI-002 CR
Feature
• Full-duplex voice and video intercom
• Support for SIP communications architecture
• Using high-resolution camera 1080P (1920 x 1080)
• Advanced echo cancellation technology
• Built-in high sensitivity microphone and speaker
• Built-in call button
• Built-in Relay output channel (door control or alarms output)
• Built-in Digital input channel (door magnetic switch detection or external emergency button)
• Support Card Type: Mifare Classic, Ultralight, DESFire
Introduction
SI-002 is a video intercom door station that supports VoIP technology, SIP communication protocol and RFID induction. With the HA-401 product, households can see visitors' image and have a video conversation with them when the doorbell ringing. After the identity confirmation, they can open the door remotely. Also, users can upload an image shot via FTP. Using high-resolution CMOS camera and advanced echo cancellation technology can show a clearer picture and excellent audio quality and timeliness of transport. It is a compact video intercom solution for building residential.
Application
• One-touch Calling
• Voice Conversation
• Remote Door Control
• Video Surveillance
• Door Position Detection
• LINE Real-time Information Notice
Specifications
| RFID |
| Frequency |
13.56 MHz |
| Supported Card |
Mifare Classic, Ultralight, DESFire |
| Digital Input |
| Channels |
2 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Relay Output |
| Channels |
1 x Form C (N.O./COM./N.C.) |
| Electrical Endurance |
1 x 10^5 ops |
| Mechanical Endurance |
2 x 10^8 ops |
| HMI |
| Camera |
1080P (1920 x 1080), CMOS Sensor |
| Audio |
AMP 2.5 W; Digital microphone |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-T
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 V ~ 48 VDC |
| Consumption |
1.68W |
| Mechanical |
| Dimensions (mm) |
102 x 161 x 41 (W x L x H) |
| Environment |
| Operating Temperature |
-10℃ ~ +60℃ |
| Storage Temperature |
-20℃ ~ +70℃ |
| Humidity |
10% ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| SI-002 CR |
Video Intercom Door Station (RoHS) |
