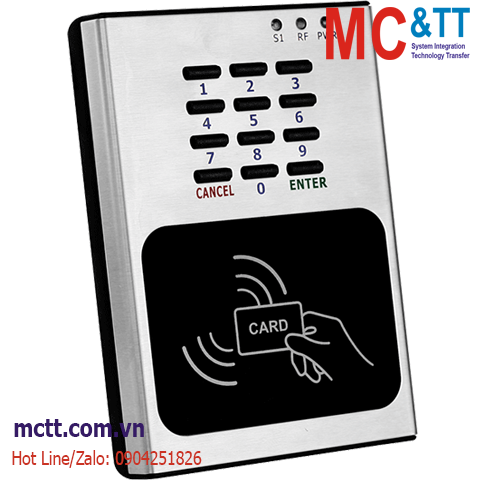

Bộ điều khiển truy cập an ninh cửa BMS ICP DAS ACS-11-MF CR
Feature
- Supports Keypad and RFID induction control.
- Supports Card Type: Mifare Classic, Ultralight, DESFire.
- Built-in Voice Message Function.
- Supports Ethernet/RS-485/CAN Bus Interface.
- Built-in RTC and WDT.
- Electric Door Lock Control and Door Position Detection.
- Provides Access Records.
- Max Card Capacity：8192 Cards.
- Supports Elevator Floor Control (Max. 16 F).
Introduction
Access Control systems are one of the most important infrastructures for a safe, secure society. ACS-11-MF/ACS-11P-MF is an access control reader that supports keypad and RFID induction of access control. It integrates three functions of door access control, voice guidance and floor control all in one, suitable for use in community door access and elevator control. ACS-11-MF/ACS-11P-MF supports Ethernet and RS-485 communication interface and provides anti-sabotage sensor and door position detection function which can consolidate the security of access control systems and effectively enhance the service quality of management.
Application
Specifications
| System |
| Micro Switch |
Channel x 1, SPDT, 6A @125/250 VAC, for anti-sabotage detection |
| RFID |
| Standard |
ISO 14443 A |
| Supported Card |
Mifare Classic, Ultralight, DESFire |
| Digital Input |
| Channels |
4 |
| Type |
Dry contact (Source)
Wet Contact (Sink, Source) |
| Relay Output |
| Channels |
2 |
| Type |
Form C |
| Contact Rating |
2A@30VDC,
0.5A@120VAC |
| COM Ports |
| Ports |
1 x RS-485 (D+, D-) |
| Baud Rate |
9600 |
| Data Format |
N, 8, 1 |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| CAN |
| Baud Rate |
1M |
| Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (mm) |
83 x 120x 28 (W x L x H) |
| Installation |
Wall Mounting (Suitable for the outlet box in United States) |
| Environment |
| Operating Temperature |
-20℃ ~ +60℃ |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ACS-11-MF CR |
Proximity Card Reader with Keypad for Access Control System (RS-485, Ethernet, CAN) (English version of voice) (RoHS) |
