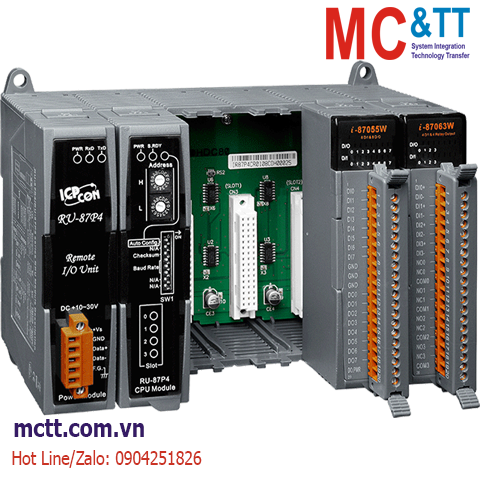

Module CPU RS-485 DCON + 4 khe cắm module I/O ICP DAS RU-87P4-G CR
Features
• One RS-485 Port for Multi-Drop Topology
• Hot Swap Allowed
• Auto Configuration
• LED Indicators for Fault Detection
• Switches to Configure Communication
• DCON Protocol (ASCII-based protocol)
• 4 Slots for I-87K Modules
• Operating Temperature: -25 ~ +75 °C
Introduction
RU-87P4 is a remote intelligent I/O expansion unit that used to expand I-87K series I/O modules over the RS-485 for industrial monitoring and controlling applications. There are more than 50 I/O modules supported with the unit, including analog input/output, digital input/output, and counter/frequency I/O modules.
RU-87P4 is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC) and operating temperature (-25 °C ~ +75 °C). It simplifies installation and maintenance of I/O modules with hot swappable and auto configuration, fault and error detection, dual watchdog, programmable power on and Safe Values.
Various software development kits (SDK) and demos are provided, such as PACSDK, LabVIEW driver, InduSoft driver, Linux driver, OPC Server, etc. The I-87K series I/O modules plugged in the RU-87Pn can be easily integrated into variant software system.
Applications
• All Kinds of On/Off Control
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| Main Unit |
| 64-bit Hardware Serial Number |
Yes |
| LED Indicators |
| Status |
1 x Power, 1 x System, 1 x Auto Configuration, 1 x Slot |
| I/O Expansion |
| I/O Type |
I-87K series |
| Slots |
4 |
| COM Ports |
| Ports |
1 x RS-485 (3000 VDC) |
| Baud Rate |
115200 bps Max. |
| Protocol |
DCON (ASCII Format) |
| HMI |
| Rotary Switch |
2 x 16 Position (0 ~ F) |
| DIP Switch |
8-bit for auto configuration, check sum and baud rate |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (mm) |
188 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| RU-87P4-G CR |
4-slot RS-485 I/O Expansion Unit with Intelligent CPU Module (DCON Protocol) (Gray Cover) (RoHS) |
