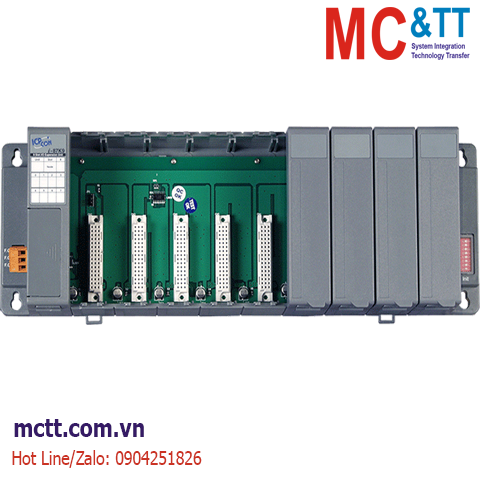

Module RS-485 DCON 9 khe cắm module I/O ICP DAS I-87K9-G CR
Features
• RS-485 Port for Multi-Drop Topology
• DCON Protocol
• 9 I/O Slots for I-87K Modules
• Operating Temperature: -25 ~ +75 °C
Introduction
I-87K9-G is an I/O expansion unit to expand I/O via the RS-485. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C). To simplify installation and maintenance of I/O modules.
There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, ActiveX, Labview driver, InduSoft driver, Linux driver, OPC server. The I-87K series I/O modules plugged in the I-87Kn can be easily integrated into variant software system.
Applications
• All Kinds of On/Off Control
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| LED Indicators |
| Status |
1 x Power |
| I/O Expansion |
| I/O Type |
High profile I-87K |
| Slots |
9 |
| COM Ports |
| Ports |
1 x RS-485 (3000 VDC Isolated) |
| Baud Rate |
115200 bps Max. |
| Protocol |
DCON |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (mm) |
354 x 111 x 75 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87K9-G CR |
9-slot RS-485 I/O Expansion Unit for I-87K Series I/O Modules (DCON Protocol) (Gray Cover) (RoHS) |
