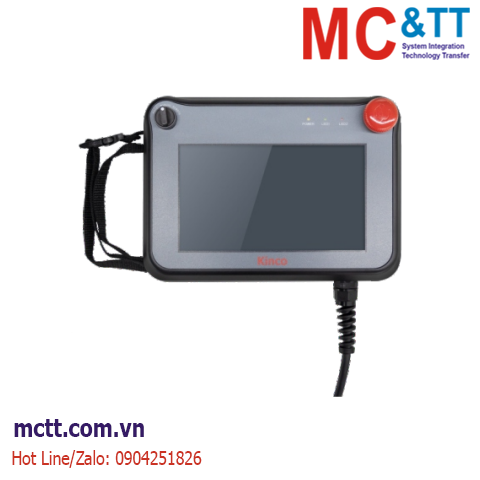

Màn hình HMI cầm tay 7 inch Kinco SZ7G
Tính năng
- Basic specification: 7"TFT, 800×480 pixels, 16.77M true color;
- Standard configuration: One 3-option switch, and one emergency stop switch; optional 3-position enable switch for occasions with high security requirements;
- Mobile operation: Handheld terminal, Standard configuration: 5m cable;
- Simple installation: Support FDM standard (hole spacing: 75×75mm) rack mounting;
- Intimate services: Customized services can be provided according to the actual applications of customers
Thông số kỹ thuật
| Model |
RT070 |
|
Performance specification |
| Display size |
7 " TFT |
|
Resolution |
800*480 pixels |
|
Display color |
16.7M true color |
| Brightness |
250cd/m² |
| Backlight |
LED |
| Touch panel |
4 line precision resistance network (surface hardness 4H) |
| Backlight life |
50000 hours |
| Programable LED |
2 |
| Emergency button |
1 |
| 3-option switch |
1 |
| Handhold switch |
None |
| Processor |
ARM RISC32bit 800MHz |
| Memory |
128MB NAND Flash + 128MB DDR3 RAM |
| RTC & recipe storage |
RTC + 256KB |
| Expandable memory |
1 USB Host |
|
Ethernet |
None |
| Program download |
Serial port (RS232), USB host |
|
COM port |
COM1:RS485, COM0:RS232 |
|
Electrical specification |
|
Input power supply |
DC16~32V, built-in isolated |
|
Rated power |
8W@24VDC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
| Cable length |
5m |
|
Structure specification |
| PCB coating (Yes/No) |
None of spraying |
| Shell color |
Black |
| Shell material |
Engineering plastic |
| Dimensions |
220*156*45 mm |
| Installation |
Rack mounting and suspension mounting |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-10～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Panel protection grade |
The front panel meets the IP requirements, and the complete machine meets the IP requirements |
|
CE certification |
EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005 |
| Configuration software |
Kinco DTools V3.5.3 and above |
Thông tin đặt hàng
Robot terminal, 7", 16.77M color, 16:9 display, 800*480 resolution, 1USB host, 1 RS232, 1 RS485
