Mô tả

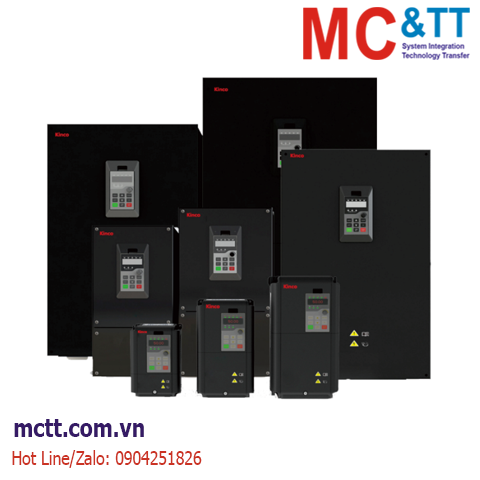

Biến tần 3 pha 380VAC 7.5kW Kinco KC200-4T-07R5G

Tính năng

   • Overcurrent suppression protection: real-time current monitoring, automatically limit the current to no more than the overcurrent suppression point;

   • Overvoltage suppression protection: When the brake resistance is not connected, the operating frequency can be automatically adjusted or the magnetic flux braking can ensure that the AC drive will not cause overvoltage protection due to high bus voltage during operation;

   • Undervoltage suppression protection (instantaneous non-stop): It can realize the function of instantaneous power loss without stopping;

   • Wave-by-wave current limiting: When the sudden load or abnormal conditions such as momentary spikes in the current occurs, it will trigger the wave-by-wave current limit protection, which can limit the rise of the current to a certain extent, so that the current does not exceed the protection value of the inverter, and avoid reporting overcurrent fault and shutdown;

   • Heat dissipation treatment: Independent air duct design, close to the IGBT power device efficient cooling, while the software built-in automatic reduction of carrier frequency according to temperature rise;

   • Overvoltage, overcurrent fault protection;

   • Input phase loss: Detect input phase loss based on bus voltage fluctuations. When phase loss occurs, a certain load is required to detect it;

   • Output phase loss: Output phase loss fault can be quickly detected before and during operation;

   • Phase to phase short circuit and short circuit to ground fault: quickly detected within 10ms before operation;

   • Inverter module overtemperature, parameter self-learning failure, current detection failure, SVC stall failure, etc;

Thông số kỹ thuật

Inverter model Power supply capacitykVA input currentA output currentA Adaptive motorkW
single-phase 200-240V 50Hz/60Hz
KC200-2S-0R40G 1.0  5.3  2.5  0.4
KC200-2S-0R75G 1.5  8.2  4.0  0.75
KC200-2S-01R5G 3.0  14.0  7.5  1.5
KC200-2S-02R2G 4.0  23.0  10.0  2.2
three-phase 380-480V 50Hz/60Hz
KC200-4T/5T-0R75G 1.5  3.4  2.3  0.75
KC200-4T/5T-01R5G 2.5 5.0  3.7  1.5
KC200-4T/5T-02R2G 3.6 5.8  5.5  2.2
KC200-4T/5T-03R7G 5.8 10.5  8.8  3.7
KC200-4T/5T-05R5G 8.6 14.5  13.0  5.5
KC200-4T/5T-07R5G 11 20.5 17 7.5
KC200-4T/5T-0011G 16.5 26 25 11
KC200-4T/5T-0015G 21 35 32 15
KC200-4T/5T-0018G 24.5 38.5 37 18.5
KC200-4T/5T-0022G 29.5 46.5 45 22
KC200-4T/5T-0030G 39.5 62 60 30
KC200-4T/5T-0037G 49.5 76 75 37
KC200-4T/5T-0045G 59 92 90 45
KC200-4T/5T-0055G 72.5 113 110 55
KC200-4T/5T-0075G 100 157 152 75
KC200-4T/5T-0090G 116 180 176 90
KC200-4T/5T-0110G 138 260 210 110
KC200-4T/5T-0132G 166 232 252 132
KC200-4T/5T-0160G 200 282 304 160
KC200-4T/5T-0185G 230 326 350 185
KC200-4T/5T-0200G 250 352 380 200
KC200-4T/5T-0220G 280 385 426 220
KC200-4T/5T-0250G 309 437 470 250
KC200-4T/5T-0280G 342 491 520 280
KC200-4T/5T-0315G 395 580 600 315
KC200-4T/5T-0355G 437.5 624 665 355
KC200-4T/5T-0400G 629 670 725 400
KC200-4T/5T-0450G 715 792 820 450
KC200-4T/5T-0500G 800 835 950 500
KC200-4T/5T-0560G 896 920 1020 560

Thông tin đặt hàng

Tài liệu

KC200 Series Inverter Selection Manual
