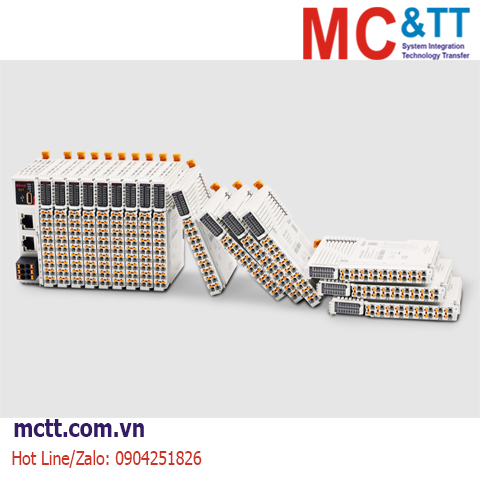

Module 16 đầu vào số Kinco RP20-1600DT
The AK8X0 series products are a new generation of medium-sized motion controllers independently developed by Kinco, dedicated to meet diverse industrial control needs. They integrate advanced functions and performance, including EtherCAT bus motion control and high-speed backplane bus advantages.
Whether it is the synchronization of multiple workstations and robots in the industrial manufacturing industry, the complex process control and regulation in the food processing field, or the centralized control and monitoring of multiple areas or equipment through dual network ports in the logistics and warehousing industry, the AK8X0 series products can be flexibly applied to complex control scenarios in multiple industries with their outstanding design and performance, providing customers with reliable solutions and continuous operational support.
Tính năng
- Powerful Platform: Upgraded Arm Cortex-A53 1.4GHz quad-core processor, delivering a significant leap in overall controller performance.
- High-Speed Backplane: LVDS-based 100 Mbps K-bus backplane design, supporting up to 16 module expansions.
- Compact Design: 12mm (16PIN) expansion modules, 54mm CPU integrating 8×DI, 8×DO, 1×RS485, 2×Ethernet, 2×EXP, 1×EtherCAT, and 1×Type-C.
- Motion Control: Up to 32-axis EtherCAT synchronized motion control (typical synchronization cycle 1ms@8 axes, E-Cam).
- User-Friendly: Built on CoDeSys platform, offering six programming methods for seamless and intuitive operation.
Thông số kỹ thuật
|
Order Model |
Type |
Description |
|
AK840M-0808DTN |
PLC |
EtherCAT bus coupler.
Expansion capabilities: supports up to 16 expansion modules. |
|
RP20-0016DTP |
Expansion Module |
DO 16×24V DC, PNP. |
|
RP20-0016DTN |
DO 16×24V DC, NPN. |
|
RP20-1600DT |
DI 16×24V DC, Sourcing/Sinking. |
|
RP20-0808DTP |
DI 8×24V DC, Sourcing.
DO 8×24V DC, PNP. |
|
RP20-0008DR |
DO 8×Relay output, normally open contacts(NO). |
|
RP20-0400TC |
AI 4×TC, thermocouple type: J/K/E/S/T. |
|
RP20-0400RD |
AI 4×RTD, sensor type: Pt100/Pt1000/Cu50. |
|
RP20-0400IV |
AI 4×IV,4-20mA/±10V/1-5V/±20mA. |
|
RP20-0004IV |
AO 4×IV,4-20mA/0-20mA/±10V/1-5V. |
|
RP20-0202IV |
AI 2×IV,4-20mA/0-20mA/0-10V/1-5V.
AO 2×IV,4-20mA/0-20mA/0-10V/1-5V. |
|
RP20-PW |
Power Module |
Powered by 24V DC, rated output: 5V DC, 2A. |
*RP20 series IO modules are compatible with AK8X0 series controllers
Thông tin đặt hàng
DI 16×24V DC, Sourcing/Sinking
Tài liệu
【Catalog】RP20 series blade-type remote I/O
【User Manual】RP20 series EtherCAT coupler
【User Manual】RP20 series DIO module
【User Manual】RP20 series Analog I/O Module
