Mô tả

Module 16 đầu ra số Kinco K622S-16DTN

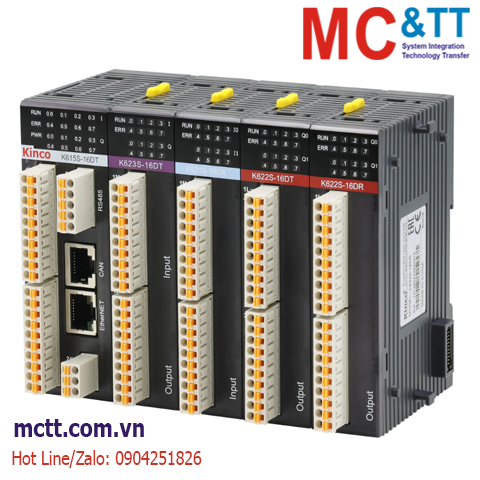

Kinco K6S series PLC is a compact modular PLC. The modular plug-in design saves more than 50% of the horizontal installation space, and the wiring can be tightened without tools, making the installation and maintenance process simpler and more efficient. The "simplified" appearance design is also equipped with a powerful core, which integrates high-speed input/output, Ethernet, CAN, RS485 and other conventional functional interfaces, further improving the flexibility, reliability, efficient control and other performance of Kinco PLC. Indicators provide reliable control solutions for industrial automation systems.

Tính năng

  • Equipped with a new MCU platform, the execution speed is further improved. At the same time, it provides a program storage space of 8k instructions and a data storage space of 20k bytes (V area + M area), which guarantees the implementation of complex control programs.
  • It comes standard with a 10/100M Ethernet port and supports Modbus TCP Client/Server and Modbus UDP industrial bus protocols. It is easy to use and powerful, and is suitable for application needs in more situations.
  • The CAN interface supports the CANopen master function, allowing a maximum of 64 slave stations to be connected. Each slave station allows a maximum of 8 TPDOs and 8 RPDOs, and supports error control methods such as node protection and heartbeat. It supports the Kinco motion control protocol and provides easy-to-use positioning control instructions. Users can easily connect Kinco's servo and driver through the CAN bus. The Kinco motion control protocol supports the connection of up to 16 nodes.
  • Integrated real-time clock (RTC), 4 high-speed pulse outputs (all channels support PTO\PWM mode), 4 high-speed counting inputs (support single\dual phase, AB quadrature counting mode), 1 Ethernet interface, 2 RS485 interface, both CAN and RS485 have built-in isolation.
  • Supports the array function, supports the use of up to 16 arrays, and each array allows up to 1024 elements (the elements can be any data type supported by the K series PLC). Users can use the array function to perform functions such as maximum, minimum, average, sorting, etc. They can also use arrays to further expand data storage space.
  • Supports the stack function, supports the use of up to 2 stacks, and each stack allows up to 1024 elements (the elements can be any data type supported by the K series PLC). Users can use the stack function to achieve corresponding needs, and can also use the stack to further expand the data storage space.
  • Modular plug-in design saves more than 50% of installation space. A maximum of 16 expansion modules can be expanded on the right side. The module types are rich, giving users more and more flexible solutions.
  • KincoBuilder software provides convenient and easy-to-use motion control instructions, and is also equipped with a guidance function to help users get started with zero threshold, rapid configuration, and efficient programming.

Thông số kỹ thuật

Model K622S-16DTN
Overview 16-channel NPN type digital output
Type Transistor Outputs NPN
Channels 16 channels (4 channels/group)
Power Supply Powered by Expansion Bus
Isolation Optoelectronic isolation, 500VAC/min
Rated Output Voltage DC24V, allowable range: DC20.4V ~ DC28.8V
Output Current per Channel max 300mA@24VDC
Output Leakage Current 10μA
Output Impedance 0.3Ω
Output Delay Turn-on <30μs
Turn-off <50μs
Protection Inductive load output protection
Output polarity reversal protection, allowing the application of reverse polarity signals at the output terminal for up to 10 seconds
Short-circuit protection
Channel parallel Only support between channels with in the same group
Indication Corresponding LED lights up in green when an output signal is valid
DO image area 2 bytes
Dimension 27x75.15x106mm

Expansion Module

K621S-16DX DI 16* DC24V (NPN/PNP)
K622S-16DT DO 16*DC24V (PNP)
K622S-16DR DO 16*Relay
K623S-16DT DI 8*DC24V (NPN/PNP), DO 8*DC24V (PNP)
K622S-16DTN DO 16*DC24V(NPN)
K633S-06IV

12 bit resolution, accuracy 0.3% full scale

4 channel AI: 4-20mA, 1-5V, 0-20mA, 0-10V

2 channel AO: 4-20mA, 1-5V, 0-20mA, 0-10V

K631S-04TC

4 channels of thermocouple input

support J,K,E,S,T-type thermocouples

cold junction compensation, external compensation optional

24-bit resolution, accuraty 0.1% full scale

K631S-04RD

4 channels of thermal resistance (RTD) input

support PT100, Cu50, PT1000 resistance forms

support two-wire, three-wire, connection methods

24 bit resolution

temperature: ± 0.6℃; Resistance: ±10

Thông tin đặt hàng

  • K622S-16DTN

DO 16*DC24V(NPN)

Tài liệu

Catalog
