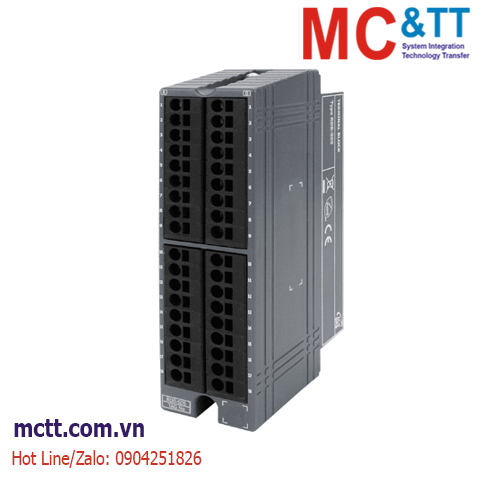

Bo mạch kết nối IO Single Terminal cho R-9041 ICP DAS RDB-S05 CR
The RDB-S05 is a termination board used to single digital output module, supporting spring clamp terminal wiring, which can effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.
Features
- Support spring clamp terminal
- Termination board disconnection detection
- Support R-9041
Specifications
| Digital Output |
| Channels |
32 |
| Mechanical |
| Dimensions (mm) |
32 x 115 x 60 |
| Environment |
| Operating Temperature |
-25 °C ~ 70 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| RDB-S05 CR |
Single I/O termination board (RoHS), for R-9041 |
