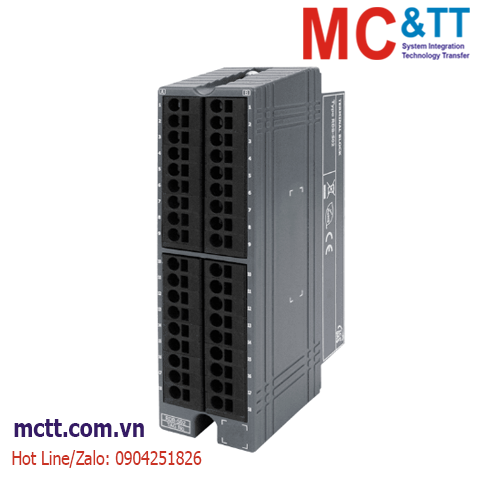

Bo mạch kết nối IO Single Terminal cho R-9019 ICP DAS RDB-S02 CR
The RDB-S02 is a termination board used to single thermocouple module, supporting spring clamp terminal wiring, which can effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.
Features
- Supports spring clamp terminals
- Supports terminal board disconnection detection
- Supports R-9019
Specifications
| Mechanical |
| Dimensions (mm) |
32 x 115 x 60 |
| Environment |
| Operating Temperature |
-25 ~ 70 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| RDB-S02 CR |
Single I/O termination board (RoHS), for R-9019 |
