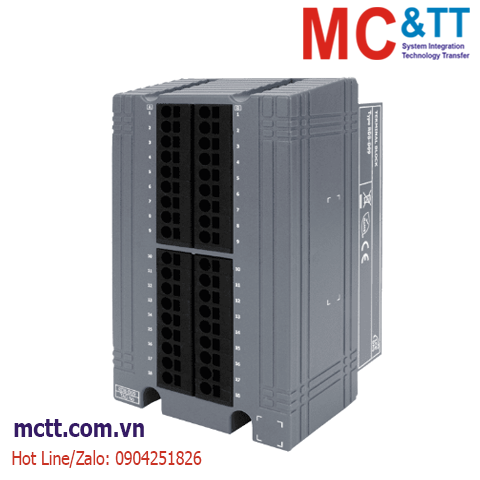

Bo mạch kết nối IO Duplex Terminal cho R-9017C1H, R-9028V1, R-9028CH, R-9084 ICP DAS RDB-D09 CR
RDB-D09 is a terminal board used to duplex isolation type analog current/voltage and pulse module, supporting spring clamp terminal wiring method, which can effectively simplify the wiring process and shorten the system installation time. It supports disconnection detection function to ensure that the alarm will be trigged in time when it disconnects from the I/O module and further improves the safety and stability of wiring signals to reduce the risk of system failure. These features are especially important for industrial environments that require high reliability and stability.
Features
- Support spring clamp terminal
- Termination board disconnection detection
- Support R-9017C1H, R-9028V1, R-9028CH, R-9084
Specifications
| Mechanical |
| Dimensions (mm) |
65 x 115 x 60 |
| Environment |
| Operating Temperature |
-25 °C ~ 70 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| RDB-D09 CR |
Duplex I/O termination board (RoHS), for R-9017C1H, R-9028V1, R-9028CH, R-9084 |
