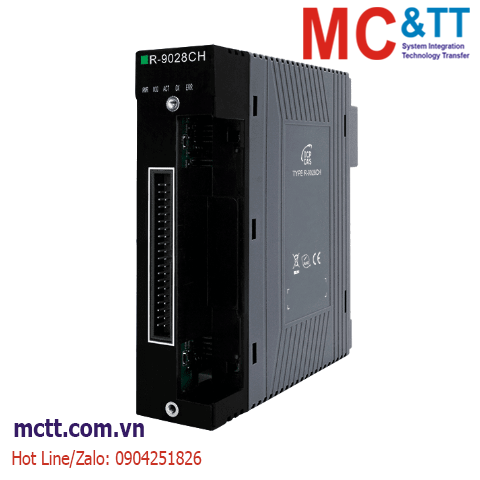

The R-9028CH is a high-precision 8-channel, 16-bit channel-isolated current output module with the following features:
- Current Output Range: 4 ~20mA current output (Source Type)
- High Accuracy: Tolerance ±0.05% FSR to ensure accurate current output.
- Power-on value & Safety value: Ensures that the module outputs a predefined current during startup or abnormal conditions.
- Channel Isolation: The electrical signals between channels are completely isolated to ensure that the channels do not interfere with each other.
- Channel Disconnection Detection: Ensure the safety and stability of channel wiring.
- HART Communications: Built-in HART master communication for accessing HART device information.
- LED Indicator: Displays channel abnormal status and module operation status.
The R-9028CH module must be used with a terminal board to connect external signals and supports a terminal board disconnection detection mechanism to ensure wiring stability. It provides 3000 VDC isolation between the power supply and the backplane bus, making it better able to prevent noise interference in industrial environments without affecting the RIO-98x0 system. Additionally, the module supports a redundancy design, allowing the system to continue stable operation even if a single I/O module fails, further enhancing system reliability.
Features
- 8 current output channels
- Power-on value & Safety value
- Built-in HART master interface
- 16 bit D/A converter
- Channel disconnection detection
- Termination board disconnection detection
- Redundant switching time (< 1 ms)
- Supports automatic detection of output current accuracy
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Yes |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
1 PWR, 1 MOD, 1 ACT, 1 DX, 1 ERR
LED 0~7 for CH High/Low Alarm
LED 16~23 for CH Break Line |
| Analog Output |
| Channels |
8 |
| Type |
4~20 mA (Support ±25% overrange) |
| Range |
±25% (0 ~ 24 mA) |
| Resolution |
16 bit |
| Accuracy |
±0.05% FSR |
| Zero Drift |
±1.5 ppm/℃ |
| Span Drift |
±3 ppm/℃ |
| Response Time |
<200 μS |
| Open Wire Detection |
Yes |
| Current Load Resistance |
< 1K Ω |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| Isolation |
3000 VDC |
| I/O Expansion |
| I/O Type |
RDB-S09 / RDB-D09 |
| HART |
| Topology |
Master, Monodrop (Point-to-Point) |
| Mechanical |
| Dimensions (mm) |
33 x 129 x 130 |
| Environment |
| Operating Temperature |
-25 °C ~ +70 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| R-9028CH CR |
8-ch, isolated 4~20mA output, HART master (RoHS) |
