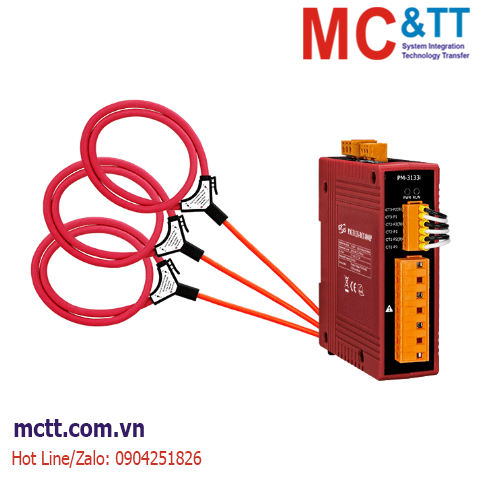

Thiết bị đo điện thông minh 3 pha 500A Ethernet Modbus TCP ICP DAS PM-3133i-RCT500P-MTCP CR
ICP DAS brings the most powerful, cost-effective Smart Power Meters PM-3133i-RCT series that access real-time electric usage for three-phase power measurement. The PM-3133i-RCT series can be applied to the low voltage primary side and/or medium/high voltage secondary side, and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipment in real-time under operation. In addition to its compact size and cost performance, the additional Rogowski Coil CT is suitable for high current measurements from 500A to 4000A, large wire diameters (e.g. busway conductor), and for installation in tight spaces. Built-in AC isolator protection, this means total isolation between the AC measurement side and the control side. It operates over a wide input voltages range 10 ~ 600 VAC which allows worldwide compatibility.
Feature
• Bi-directional Energy
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Current Measurements Up to 4000 A
• Isolated Voltage Measurements Up to 600 V
• Rogowski Coil Soft CT for Easy Installation
• W Accuracy Better than 2% (PF=1; Input Current >50A; for -500P and -1000P)
• W Accuracy Better than 2% (PF=1; Input Current >200A; for -2000P and -4000P)
• Total Harmonic Distortion (THD)
• IEC 61010-1 and EN 61010-1
Application
• Generator monitoring
• Switchgear distribution systems
• Energy Management
Specifications
| AC Power Measurement |
| Wiring |
3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops |
3-phase: 1
1-phase:
3 @ 1P2W-1CT
1 @ 1P3W-2CT |
| Input Voltage |
10 ~ 600 V |
| Input Current |
PM-3133i-RCT500P-MTCP: CTØ55 mm (5 A ~ 500 A)
PM-3133i-RCT1000P-MTCP: CTØ80 mm (5 A ~ 1000 A)
PM-3133i-RCT2000P-MTCP: CTØ105 mm (5 A ~ 2000 A)
PM-3133i-RCT4000P-MTCP: CTØ185 mm (5 A ~ 4000 A) |
| Input Frequency |
50/60 Hz |
| W Accuracy |
Better than 2% (PF=1)
Condition:
Input current > 50A; (For -500P, -1000P)
Input current > 200A; (For -2000P, -4000P) |
| Power Parameter Measurement |
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent
Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate |
1 Second |
| Ethernet |
| Ports |
1x RJ45, 10/100 Base-TX |
| PoE |
Yes |
| Protocol |
Modbus TCP |
| Power |
| Input Range |
+12 ~ 48 VDC |
| Consumption |
2W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 127 x 100 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-25 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PM-3133i-RCT500P-MTCP CR |
Modbus TCP, Isolated 3-phase power meter, 500A Rogowski Coil CT (Inside diameter 55 mm; wire lead 4 m) x 3 (RoHS) |
