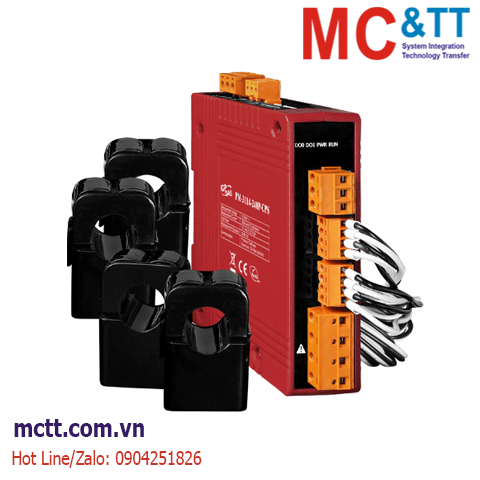

Thiết bị đo điện thông minh 1 pha 1P2W-1CT 60A CANopen ICP DAS PM-3114-100P-CPS CR
Feature
• True RMS Power Measurements
• Single-phase 4 Loops Energy Analysis for 1P2W
• Two Independent Loops Reference Voltages
• Current Measurements Up to 200 A with Different CT Ratio
• Voltage Measurements Up to 300 V
• Clip-on CT for Easy Installation
• W Accuracy Better than 0.5% (PF=1)
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1
Introduction
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3114 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (< 0.5%, PF=1 ), the PM-3114 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages.
Application
• Generator monitoring
• Switchgear distribution systems
• Energy Management
Specifications
| AC Power Measurement |
| Wiring |
1P2W-1CT |
| Loops |
1-phase: 4 |
| Input Voltage |
10 ~ 300 V |
| Input Current |
PM-3114-100-CPS: CTØ10 mm (0.05 A ~ 60 A)
PM-3114-100P-CPS: CTØ10 mm (0.05 A ~ 60 A)
PM-3114-160-CPS: CTØ16 mm (0.1 A ~ 100 A)
PM-3114-160P-CPS: CTØ16 mm (0.1 A ~ 100 A)
PM-3114-240-CPS: CTØ24 mm (0.15 A ~ 200 A)
PM-3114-240P-CPS: CTØ24 mm (0.15 A ~ 200 A) |
| Input Frequency |
50/60 Hz |
| W Accuracy |
Better than 0.5% (PF=1) |
| Power Parameter Measurement |
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate |
1 Second |
| Relay Output |
| Channels |
2 |
| Type |
Power Relay |
| Contact Rating |
Form A:
5 A @ 250 VAC
5 A @ 30 VDC |
| CANopen |
| Baud Rate |
125 k (default), 250 k, 500 k, 1 M; DIP Switch Selectable |
| Protocol |
CANopen |
| Power |
| Input Range |
+12 ~ 48 VDC |
| Consumption |
2W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 127 x 100 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-25 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PM-3114-100P-CPS CR |
CANopen, 4 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 4 (RoHS) |
