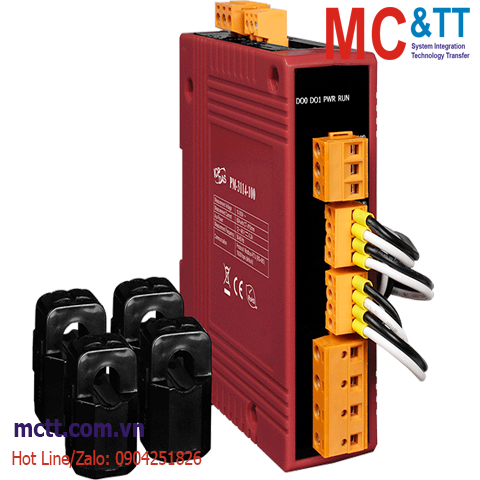

Thiết bị đo điện thông minh 1 pha 1P4W-4CT 60A RS-485 Modbus RTU ICP DAS PM-3114-100 CR
Feature
• True RMS Power Measurements
• Energy Analysis for 1P2W, 1P4W
• Current Measurements Up to 60 A with Different CT Ratio
• Voltage Measurements Up to 300 V
• Clip-on CT for Easy Installation
• W Accuracy Better than 0.5% (PF=1)
• Supports Modbus RTU Protocol
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1
Introduction
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3000 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (< 0.5%, PF=1 ), the PM-3000 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.
Application
• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis
Specifications
| AC Power Measurement |
| Wiring |
1P4W-4CT |
| Loops |
Single-phase |
| Input Voltage |
10 ~ 300 V |
| Input Current |
CTØ10 mm (0.05 A ~ 60 A) |
| Input Frequency |
50/60 Hz |
| W Accuracy |
Better than 0.5% (PF=1) |
| Power Parameter Measurement |
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate |
1 Second |
| CT |
| Includes CTs |
4 |
| Type |
Clip |
| Max. Current |
60 A |
| Inside Diameter |
10 mm |
| Leading Cable |
1.8 m |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
9600, 19200 (default), 38400, 115200; DIP Switch Selectable |
| Data Format |
N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
| Protocol |
Modbus RTU |
| Isolation |
3000 VDC |
| Power |
| Input Range |
+12 ~ 48 VDC |
| Consumption |
2W |
| Alarm Output |
Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VD |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 127 x 100 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-25 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PM-3114-100 CR |
Modbus RTU, 4 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 1.8 m) x 4 (RoHS) |
