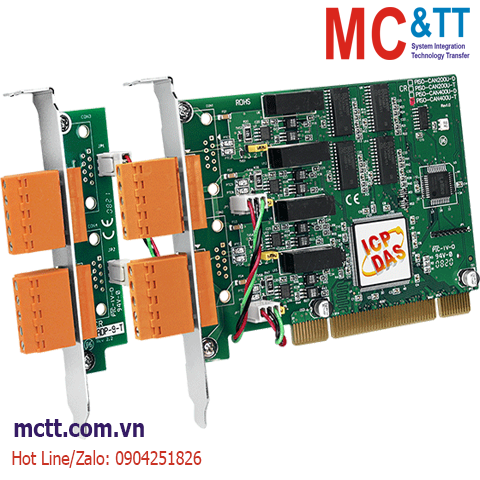

Card PCI 4 cổng CAN ICP DAS PISO-CAN400U-T CR

Features

  • Four independent CAN bus 2.0A/2.0B communication ports
  • Compatible with CAN specification 2.0 parts A and B
  • On-board optical isolation protection
  • Programmable transfer rate up to 1 Mbps
  • 2500 Vrms photo couple isolation on the CAN bus
  • Jumper select 120Ω terminal resistor for each port
  • Direct memory mapping to the CAN controllers
  • 33MHz 32bit 5V PCI bus (V2.1) plug and play
  • Universal PCI card, supports both 5V and 3.3V PCI bus
  • We have verified to drive 100 CAN nodes at the same time

Introduction

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, PISO-CAN400U-D can represents an economic solution of an active CAN board. It has two or four independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications. Besides, PISO-CAN400U-Duses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”.

Applications

  • CAN bus communication application
  • DeviceNet, CANopen, CAN J1939, SDS(System Wide Network) protocol application
  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition

Click to view the Introduction of https://mctt.vn/can-bus-icp-das

Specifications

Software
Driver Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft
SDK VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net
PC Bus
Type Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 4
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Power
Consumption 300 mA @ 5 V
Mechanical
Dimensions (mm) 126 x 85 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 5 ~ 85% RH, Non-condensing

Specification Memo

Note: We have verified to drive 100 CAN nodes at the same time via one CAN port of PISO-CAN400.

Download

Datasheet

Documents

Ordering Information

PISO-CAN400U-T     CR  4-port Isolated Protection CAN Universal PCI Card with 5-pin Screw Terminal Connector (RoHS)
