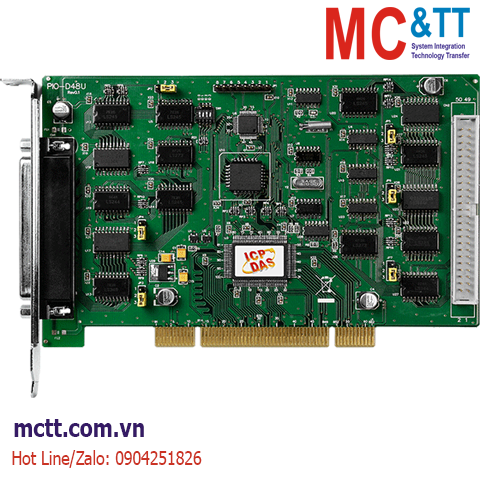

Card PCI 48 kênh vào/ra số DI/DO + 2 kênh Timer/Counter/Frequency ICP DAS PIO-D48U CR

Chia sẻ:
Mã sản phẩm: PIO-D48U
Thương hiệu: ICP DAS
Tình trạng:

Universal PCI, 48-ch Digital I/O Board

Liên hệ
Mô tả

Card PCI 48 kênh vào/ra số DI/DO + 2 kênh Timer/Counter/Frequency ICP DAS PIO-D48U CR

Features

  • Universal PCI (3.3 V/5 V) Interface
  • 48 Buffered TTL Digital I/O Lines
  • Six 8-bit Bi-directional Programmable I/O Ports
  • Emulates two Industrial-standard 8255 PPI Ports (Mode 0)
  • All I/O Lines Buffered on the Board
  • 4-channel Interrupt Source
  • Supports Card ID (SMD Switch)
  • Supports DO Status Readback (Register Level)
  • Buffer Output for Higher Driving Capability
  • DI/O Response Time approximately 1 μs (1 MHz)

Introduction

The PIO-D48U supports 3.3 V/5 V PCI bus. These cards provide 48 TTL digital I/O lines, and these lines are grouped into six 8-bit bi-direction ports. Every three 8-bit ports are grouped as port A (PA), port B (PB) and port C (PC) on a connector, and the port C can be split into 2 nibble-wide(4-bit) parts. All ports are configured as inputs upon power-up or reset.

The PIO-D48U also adds a Card ID switch and pull-high/ pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-D48U cards in one computer. The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Accessories

Applications

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux and DasyLab.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
50-pin box header x 1
Digital Input
Channels 48 (Bi-Direction)
Type 5 V/TTL
Sink/Source (NPN/PNP) Sink: 64 mA @ 0.8 V
Source: 32 mA @ 2.0 V
ON Voltage Level Logic 1: 2.0 V Min.
OFF Voltage Level Logic 0: 0.8 V Max.
Response Speed 1 MHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 48 (Bi-Direction)
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Response Speed 1 MHz (Typical)
Timer/Counter/Frequency
Channels 2 (Event Timer x 1/32-bit Timer x 1)
Type 5 V/TTL
Resolution 16-bit
Reference Clock Internal: 4 MHz
PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Power
Consumption 900 mA @ +5 V
Mechanical
Dimensions (mm) 105 x 156 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PIO-D48U     CR  Universal PCI, 48-ch Digital I/O Board (RoHS)
