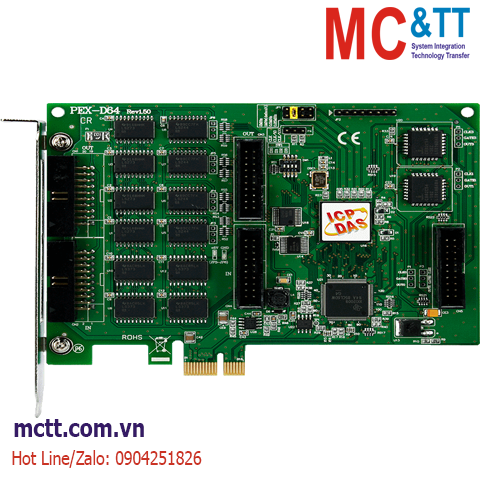

Card PCI Express 64 kênh vào/ra số DI/DO + 6 kênh Timer/Counter/Frequency ICP DAS PEX-D64 CR
Features
- Supports PCI Express x1
- 64 channels of digital I/O
- One 32-bit programmable internal timer
- One 16-bit event counter
- Card ID Function(SMD Switch)
- One 16-bit counter and One 32-bit counter with 4 MHz time base
- 3 independent programmable 16-bit down counter
- Interrupt trigger by : Even/Timer trigger
Introduction
The PEX-D64 supports PCI Express bus. These cards provide 32-ch DI and 32-ch DO that consist of two 16-bit input ports and two 16-bit output ports. The PEX-D64 offer 6-ch counter/timer with four-clock sources, 2 MHz, 1 MHz, 500 kHz and 250 kHz. The user can use the clock source from the soldering pad. 3 of the 6-ch timer/ counter are for general purposes such as frequency measurement, event counting and pulse generation; the other 3 channels are for interrupt function.
The PEX-D64 has a Card ID switch with which users can recognize the board by the ID via software when using two or more PEX-D64 cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

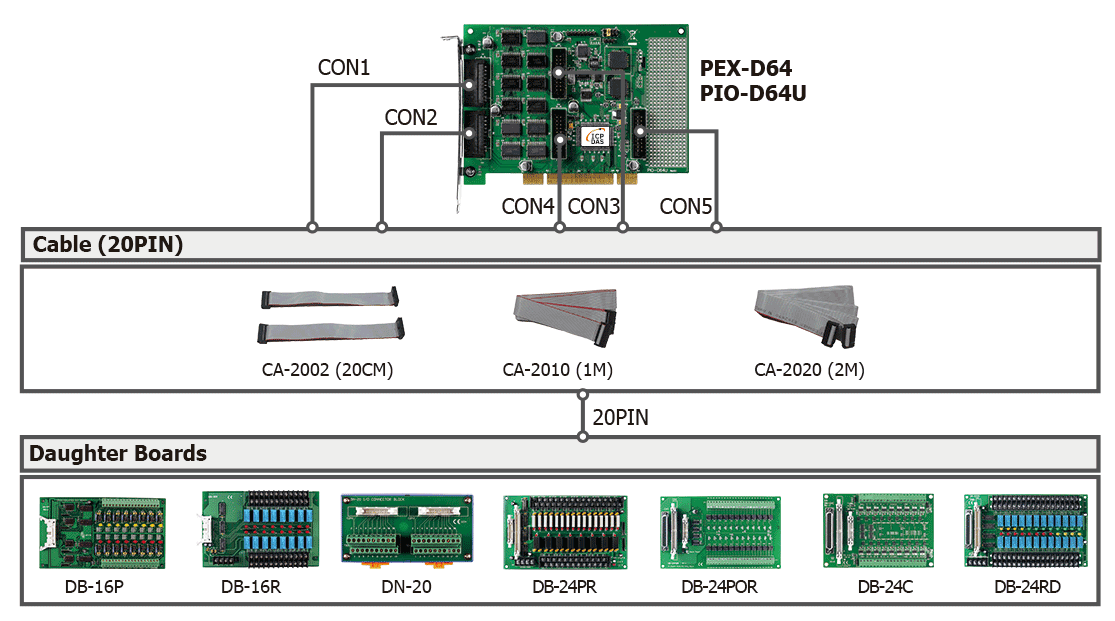

Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-express-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
20-pin box header x 5 |
| Digital Input |
| Channels |
32 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
500 kHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
32 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Load Current |
Sink: 24 mA@ 0.8 V
Source: 15 mA @ 2.0 V |
| Response Speed |
500 kHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
6 (Independent x 3/EVTIRQ x 1/TMRIRQ x 1/EXTIRQ x 1) |
| Type |
5 V/TTL |
| Resolution |
16-bit |
| Reference Clock |
Internal: 4 MHz |
| PC Bus |
| Type |
PCI Express x 1 |
| Data Bus |
8-bit |
| Power |
| Consumption |
200 mA @ +3.3 V
180 mA @ +12 V |
| Mechanical |
| Dimensions (mm) |
112 x 156 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PEX-D64 CR |
PCI Express, 64-ch Digital I/O Board with Timer/Counter (RoHS) |
