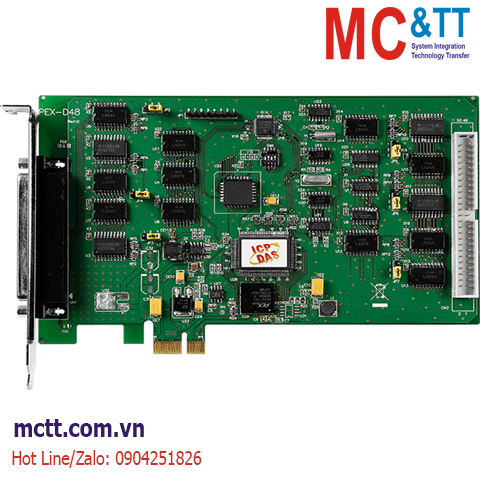

Card PCI Express 48 kênh vào/ra số DI/DO + 2 kênh Timer/Counter/Frequency ICP DAS PEX-D48 CR
Features
- PCI Express x1 Interface
- Supports Card ID (SMD Switch)
- Emulates two Industrial-standard 8255 PPI Ports (Mode 0)
- DI/O Response Time approximately 2 μs (500 kHz Max.)
- DO Provides Higher Driving Capability
- One 16-bit Event Counter
- 48 Buffered TTL Digital Input/Output Lines
- Six 8-bit Bi-directional Input/Output Ports
- One 32-bit Programmable Internal Timer
- Pull-high/Pull-low Jumpers for DI Channels
- Four Interrupt Sources
Introduction
The PEX-D48 board utilizes the PCI Express bus and is designed as an easy replacement for the PIO-D48/PIO-D48U/PIO-D48SU series without requiring any modification to either the software or the driver.
The PEX-D48 provides 48 buffered TTL Digital Input/Output lines, which are grouped into six 8-bit bi-directional ports: Port A (PA), Port B (PB) and Port C (PC). Port C can also be split into two nibble-wide (4-bit) segments. All ports are configured as input mode during power-on or after a reset.
The PEX-D48 also includes an onboard Card ID that enables the board to be easily recognized via software if two or more cards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or line broken.

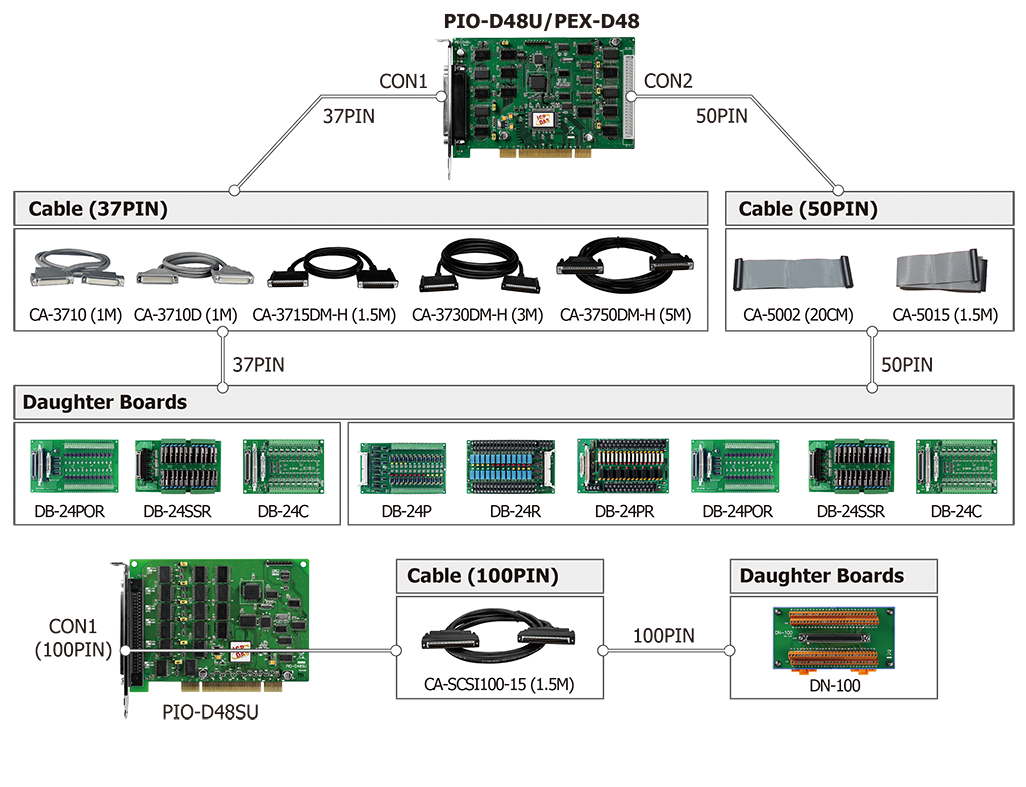

Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-express-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
50-pin box header x 1 |
| Digital Input |
| Channels |
48 (Bi-Direction) |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
500 kHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
48 (Bi-Direction) |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 64 mA @ 0.8 V
Source: 32 mA @ 2.0 V |
| Response Speed |
500 kHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
2 (Event Timer x 1/32-bit Timer x 1) |
| Type |
5 V/TTL |
| Resolution |
16-bit |
| Reference Clock |
Internal: 4 MHz |
| PC Bus |
| Type |
PCI Express x 1 |
| Data Bus |
8-bit |
| Power |
| Consumption |
1500 mA @ +3.3 V
0 mA @ +12 V |
| Mechanical |
| Dimensions (mm) |
112 x 172 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PEX-D48 CR |
PCI Express, 48-ch Digital I/O Board (RoHS) |
