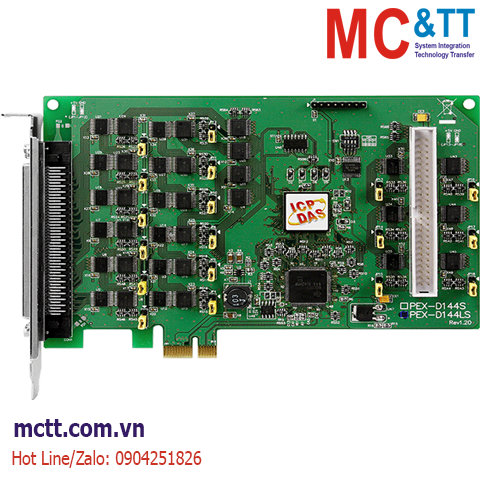

Card PCI Express 144 kênh vào/ra số DI/DO ICP DAS PEX-D144LS CR
Features
- PCI Express x1 Interface
- Supports Card ID (SMD Switch)
- DI/O Response Time approximately 2 μs (500 kHz Max.)
- DO Provides Higher Driving Capability
- 144 Buffered CMOS Digital Input/Output Lines
- Twelve/Eighteen 8-bit Bi-directional I/O Ports
- Four Interrupt Sources
- Pull-high/Pull-low Jumpers for DI Channels
Introduction
The PEX-D144LS supports PCI Express bus. These cards provide 144 TTL digital I/O lines that are grouped into eighteen 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs Ports on power-up or after a reset.
The PEX-D144LS provides a high-density connector that reduces the amount of installation space required for the card in the computer. The PEX-D144LS cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The PEX-D144LS also adds pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Comparison Table |
| Model |
Interface |
DI Pull-High/Low |
Compatibility |
Advantage |
| PEX-D144LS |
PCI Express |
Yes |
5 V/CMOS |
Low power consumption、
Low temperature |
| PIO-D144LU |
Universal PCI |
Yes |
5 V/CMOS |
Low power consumption、
Low temperature |
| PIO-D144U |
Universal PCI |
No |
5 V/TTL |
High DO Driving
(Output Capability) |

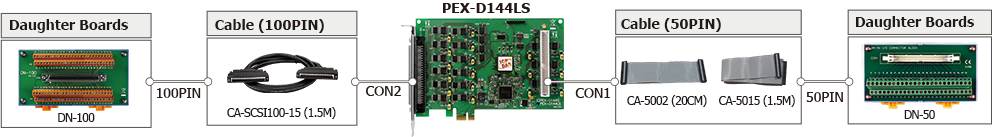

Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-express-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female SCSI II 100-pin x 1
50-pin box header x 1 |
| Digital Input |
| Channels |
144 (Bi-Direction) |
| Type |
5 V/CMOS |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
250 kHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
144 (Bi-Direction) |
| Type |
5 V/CMOS |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.1 V Max.
Logic 1: 4.4 V Min. |
| Load Current |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| Response Speed |
250 kHz (Typical) |
| PC Bus |
| Type |
PCI Express x 1 |
| Data Bus |
8-bit |
| Power |
| Consumption |
750 mA @ +3.3 V
0 mA @ +12 V |
| Mechanical |
| Dimensions (mm) |
100 x 162 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PEX-D144LS CR |
PCI Express, 144-ch Digital I/O Board (SCSI II Connector, RoHS) |
