Card PCI 64 kênh vào/ra số DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-D64HU CR

Chia sẻ:
Mã sản phẩm: PCI-D64HU
Thương hiệu: ICP DAS
Tình trạng:

Universal PCI, 40 MB/s, 64-ch Digital I/O Board

Liên hệ
Mô tả

Card PCI 64 kênh vào/ra số DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-D64HU CR

PCI-D64HU CR dừng sản xuất, thay thế và nâng cấp thành PIO-D64U

Features

  • Universal PCI (3.3 V/5 V) Interface
  • 32-channel, 5 V/TTL Digital Output
  • Data Transfer Rate up to 40 MB/s for each DMA Channel
  • Onboard 1 k/2 k DWORD FIFO for DI/DO, respectively
  • DO FIFO Supports Ring Buffer Mode
  • No Bus Loading in Repetitive Pattern Generation Applications
  • 32-channel, 5 V/TTL Digital Input
  • 2-channel Bus Mastering Scatter/Gather
  • 8-channel Optically-isolated Digital Input
  • Data Transfer Modes:
    • Direct Program Control, Internal Timer Pacer
    • External Clock (DI only), Handshaking

Introduction

The PCI-D64HU is a high-speed digital I/O card containing 32 Digital Input channels and 32 Digital Output channels. The high-performance design makes this card perfect for high-speed data transfer and pattern generation applications.

The PCI-D64HU performs high-speed data transfer using a bus-mastering DMA via the 32-bit PCI bus, with a maximum data transfer rate of up to 40 MB per second. A variety of digital I/O transfer modes are supported, including direct programmed I/O control, timer pacer control, external clock mode and handshaking mode.

The PCI-D64HU also features a programmable digital filter for all input signals, including handshaking and trigger signals. The PCI-D64HU is a reliable and cost-effective interface that can be used to control any high-speed peripherals connected to your computer system.

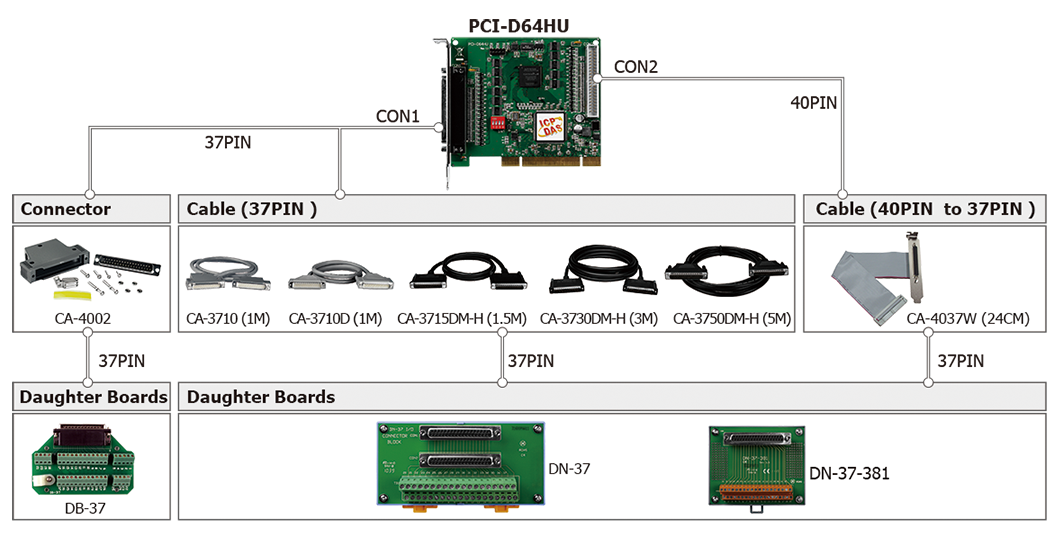

Accessories

Applications

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux and DasyLab.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
40-pin Box header x 1
Digital Input
Channels 32
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 10.0 MHz (Max.)
Trigger Mode Static Update
Digital Output
Channels 32
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.55 V Max.
Logic 1: 2.0 V Min.
Load Current Sink: 64 mA @ 0.55 V
Source: 32 mA @ 2.0 V
Response Speed 10.0 MHz (Max.)
Timer/Counter/Frequency
Channels 3
Resolution 16-bit
Input Frequency 2.5 ~ 20 MHz
PC Bus
Type Universal PCI, 32-bit, 33 MHz
Power
Consumption 200 mA @ +5 V typical (output no load)
Mechanical
Dimensions (mm) 105 x 120 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PCI-D64HU     CR  Universal PCI, 40 MB/s, 64-ch Digital I/O Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors
