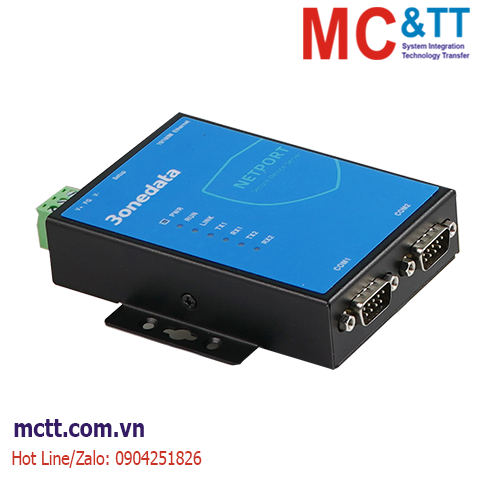

Bộ chuyển đổi 1 cổng RS-232/485/422 sang Ethernet 3Onedata NP5000-1T-1DI(3IN1)-DB-P(12-48VDC)

Chia sẻ:
Mã sản phẩm: NP5000-1T-1DI(3IN1)-DB-P(12-48VDC)
Thương hiệu: 3onedata
Tình trạng: Còn hàng

1/2/4/8-port RS-232/485/422 3IN1 Secure Serial Device Server

Liên hệ
Mô tả

NP5000-1T-1DI(3IN1)-DB-P(12-48VDC) là bộ chuyển đổi tín hiệu 2 cổng RS-232/485/422 sang 1 cổng Ethernet – Serial device server của hãng 3Onedata, được phân phối và bảo hành chính hãng bởi MC&TT tại thị trường Việt Nam.

NP5000 series cung cấp 4 tùy chọn 1/2/4/8 cổng RS-232/485/422 sang 1/2 cổng đồng Ethernet 100M. Máy chủ thiết bị nối tiếp hỗ trợ nhiều giao thức mạng, chẳng hạn như giao thức TCP, UDP, RFC2217, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP và DHCP. Nó cũng sở hữu các chức năng quản lý hoàn chỉnh, bao gồm Kiểm soát truy cập, Cấu hình nhanh, Nâng cấp trực tuyến, v.v. Mỗi cổng nối tiếp hỗ trợ 4 kết nối phiên TCP hoặc UDP và nó cũng hỗ trợ các chế độ vận hành RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom và chế độ làm việc DRDAS TCP Server và TELNET, Chế độ truy cập WEB và SSHD.

Hơn nữa, công cụ cấu hình quản lý được cung cấp dựa trên nền tảng Windows có thể hướng dẫn người dùng quản lý và định cấu hình thiết bị, đạt được kết nối mạng thiết bị nối tiếp ngay lập tức thông qua các cài đặt đơn giản. Nó có thể cung cấp cho người dùng trải nghiệm tốt với thiết kế giao diện hệ thống quản lý mạng thân thiện, thao tác đơn giản và thuận tiện.

Sản phẩm này hỗ trợ nút RESET, có thể đạt được chức năng khôi phục cài đặt gốc của thiết bị. Phần cứng sử dụng thiết kế không quạt, tiêu thụ điện năng thấp, nhiệt độ và điện áp rộng và đã vượt qua các thử nghiệm tiêu chuẩn công nghiệp nghiêm ngặt, có thể phù hợp với môi trường cảnh công nghiệp với các yêu cầu khắc nghiệt đối với EMC. Sản phẩm được thiết theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, vi xử lý, máy tính nhúng…vv. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông minh, hệ thống kiểm soát an ninh,…

Tính năng

  • Support 1/2 3IN1 DB9 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface or 4/8 3IN1 RJ45 serial port to 2 10/100Base-T(X) self-adaptive Ethernet interfaces
  • Support network modes such as redundant mode, switching mode and dual IP mode
  • Support RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes
  • Support dual power supply 12~48VDC wide voltage input range
  • Support -40~75℃ wide temperature operation

Thông số kỹ thuật

Ethernet

Standard: 10Base-T, 100Base-TX

Protocol: TCP, UDP, ARP, HTTP, HTTPS, TELNET, ICMP, SMTP, SNTP, DHCP, DNS

Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning

Interface form: RJ45

Interface quantity: 1/2

Duplex mode: Full/Half Duplex Mode Self-adaptive

Work mode: each serial port can simultaneously establish up to 4 TCP/UDP session connections, support work modes such as RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server

Serial Port

Standard: EIA RS-232C, RS-485, RS-422

Quantity of serial port: 1/2/4/8 3IN1 or 4/8 RS-485 serial ports

RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD

RS-485 signal: D+, D-, GND

RS-422 signal: T+, T-, GND, R+, R-

Baud rate: 110bps-115200bps

Data bit: 5bit, 6bit, 7bit, 8bit

Parity bit: None, Even, Odd, Space, Mark

Stop bit: 1bit, 1.5bit, 2bit

Interface form: DB9 or RJ45

Flow control: RTS/CTS, DTR/DSR, XON/XOFF

Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC)

Load capacity: RS-485/422 end supports 32-node polling (customizable 256 nodes)

Transmission distance: RS-232, 15m; RS-485/422, 1200m

Pull high/low resistor for RS-485: 4.7kΩ

Electromagnetic isolation strength: 2kVDC

Console port (Optional)

CLI command line management port (RS-232), RJ45

Configuration Method

WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration

Security

User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control

Indicator

Power supply indicator, Ethernet port indicator, serial port indicator, running indicator

Power supply

The power supply interface is 3-pin 5.08mm pitch terminal blocks; input power supply: 12~48VDC; support non-polarity

Power consumption

Available Models

No-load

(@12VDC)

Full-load

(@12VDC)

NP5000-1T-1DI(3IN1)-DB-P(12-48VDC), NP5000-1T-2DI(3IN1)-DB-P(12-48VDC)

0.9W

1.1W

NP5000-2T-4DI(3IN1)-RJ-P(12-48VDC), NP5000-2T-8DI(3IN1)-RJ-P(12-48VDC)

3.4W

4.1W

NP5000-2T-4DI(RS-485)-TB-P(12-48VDC)

1.7W

1.9W

NP5000-2T-8DI(RS-485)-TB-P(12-48VDC)

1.7W

2.0W

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: Desktop and Wall Mounting

NP5000-1T-1DI(3IN1)-DB-P(12-48VDC), NP5000-1T-2DI(3IN1)-DB-P(12-48VDC):

Dimension (W x H x D): 97mm×25mm×110mm (lugs are included)

Weight: 297g

NP5000-2T-4DI(3IN1)-RJ-P(12-48VDC), NP5000-2T-8DI(3IN1)-RJ-P(12-48VDC):

Dimension (W x H x D): 170mm×30mm×110mm (lugs are not included)

Weight: 590g

NP5000-2T-4DI(RS-485)-TB-P(12-48VDC), NP5000-2T-8DI(RS-485)-TB-P(12-48VDC):

Dimension (W x H x D): 170mm×30mm×110mm (lugs are not included)

Weight: 530g

Industrial Standard

IEC 6100042 (ESD, electrostatic discharge), Level 3

  • Air discharge: ±8kV
  • Contact discharge: ±6kV

IEC 6100044 (EFT, electrical fast transient pulses), Level 3

  • Power supply: ±2kV
  • Signal: ±1kV

IEC 6100045 (Surge), Level 3

  • Power supply: common mode±2kV, differential mode±1kV
  • Signal: common mode±2kV, differential mode±1kV

Shock: IEC 60068- 2- 27

Free fall: IEC 60068- 2- 32

Vibration: IEC 60068- 2- 6

Certification

CE, FCC, RoHS

Thông tin đặt hàng

  • NP5000-1T-1DI(3IN1)-DB-P(12-48VDC)

1* RS-232/485/422 + 1*10/100Base-T(X) RJ45, single power supply 12~48VDC,  desktop or wall mounting
