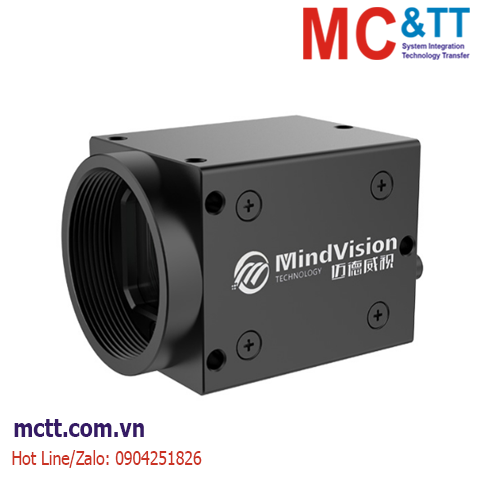

Camera công nghiệp USB2.0 Area Scan 1/3" CMOS, 3.75um, 1.2MP, 1280x960, 39fps MindVision MV-UBS130GM
USB2.0 has a simple structure, a variety of single-board modules, small size, which can effectively save product size, and is suitable for small instruments and small devices; no external power supply is required, easy to use, and high performance price ratio
Tính năng
- USB2.0 interface, no need for external power supply, plug and play
- Support 8bit to 12bit raw data output.
- Support external trigger, strobe synchronization
- Support Windows, Linux and ARM Linux, Android system
- Inserted with hardware frame buffer, support more than 32 cameras working at the same time
- Custom data can be written in the camera
Thông số kỹ thuật
| Specifications |
MV-UBS130GM |
| Sensor |
1/3" CMOS |
| Sensor type |
AR0135 |
| Camera type |
Mono |
| Pixel size |
3.75umx3.75um |
| Effective pixels |
1.2MP |
| Resolution @ frame rate |
1280x960MAX@39fps |
| Exposure mode |
Frame exposure |
| Signal to noise ratio |
40.7dB |
| Dynamic range |
71.1dB |
| Sensitivity |
85ke-/lux*sec @670nm |
| GPIO |
1way optically isolated input, 2 way optically isolated output |
| Output pixel width |
12bit |
| AD width |
12bit |
| Frame buffer |
32MB |
| Exposure time range |
0.019~18.2ms |
| Maximum gain (multiple) |
4 |
| User EEPROM |
2K Bytes |
| Video output format |
Mono 8/12bit |
| Lens interface |
C/CS port, providing adapter rings |
| Data interface |
USB2.0 |
| Power supply |
5V |
| Power |
<2W |
| Boundary dimension |
29(mm)X29(mm)X35.7(mm) (Lens base and rear shell interface are not included) |
| Weight |
<75g |
| Working temperature |
0~50℃ |
| Working humidity |
20~80%(No Condensation) |
| Storage temperature |
-30~60℃ |
| Storage humidity |
20~95%(No Condensation) |
| Operating system |
WINXP,WIN7 /8 /10 32 & 64 -bit systems, Linux and ARM Linux drivers (customizable), Android platform drivers (customizable) |
| Driver |
Directshow components Halcon special components Labview dedicated drive OCX components TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other function |
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
