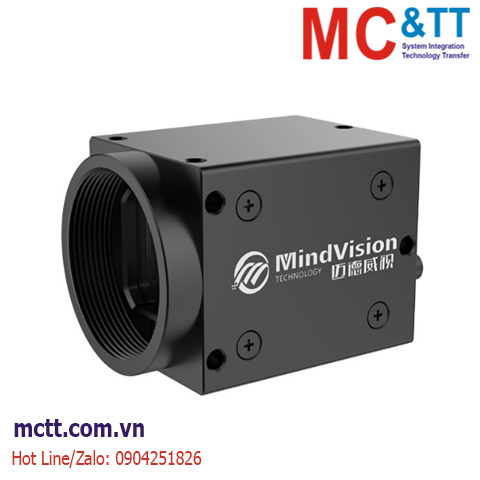

Camera công nghiệp USB2.0 Area Scan 5MP, 1/2.5", 2.2um, 2592x1944, 8fps MindVision MV-UBS502C
MV-UBS502C/M has high resolution, low noise, excellent performance, easy installation and usage and other features.It is suitable for industrial inspection, medical treatment, scientific research, education and other fields.
Tính năng
- USB2.0 interface, no need for external power supply, plug and play.
- 0.3MP to 10MP pixel CMOS、CCD
- Support 8bit raw data output.
- Support external trigger, strobe synchronization.
- Support Windows, Linux and ARM Linux, Android system.
- With hardware frame buffer, support more than 32 cameras working at the same time.
- Custom data can be written in the camera
Thông số kỹ thuật
| Model |
Product Model |
MV-UBS502C |
MV-UBS502M |
|
Product Name |
USB2.0 Camera
|
Sensor
|
Color/Mono |
Color |
Mono |
| Sensor Model |
AR0522
|
| Sensor Type |
CMOS
|
| Optical Size |
1/2.5" |
| Pixel Size |
2.2x2.2um
|
| Exposure Method |
Line Exposure
|
| Efective Pixels |
5MP
|
| AD Width |
12bit
|
Performance
Parameters
|
Signal-to-Noise Ratio |
40dB |
| Dynamic Range |
74.3dB |
| Sensitivity |
21.6 ke﹣/lux*sec |
36 ke﹣/lux*sec |
| Quantum Efciency |
/
|
| Resolution@Frame Rate |
2592x1944 MAX@8fps |
| Output Pixel Width |
12bit
|
| Video Output Format |
Bayer GR 8bit |
Mono 8 bit |
| Maximum gain |
15X
|
| Exposure Time Range |
0.0238~1556.5ms
|
| Trigger Mode |
Continuous/Software Trigger/Hardware Trigger
|
| Frame Bufer |
16MB
|
| User-Defned Data Area |
2KB
|
Electrical
Characteristics
|
Data Interface |
USB2.0 |
| I/O Port |
1 channel of optocoupler input, 2 channels of optocoupler output |
| Power Supply |
USB 5V |
| Power |
<2W
|
Structural
Characteristics
|
Heat Dissipation Method |
Aluminum Alloy Body Natural Cooling
|
| Lens Mount |
C/CS Interface, Adapter Ring Provided
|
| External Dimensions |
29x29x35.7mm (excluding lens mount and rear shell interface)
|
| Weight |
<75g
|
| Ingress Protection Rating |
IP40
|
| Temperature |
Operating Temperature 0~50°C / Storage Temperature -30~60°C
|
| Humidity |
Operating Humidity 20~80% (non-condensing) / Storage Humidity 20~95% (non-condensing)
|
Protocol
Standards
|
Operating system |
WinXP, Win7/8/10 (32 & 64-bit systems), Linux and ARM Linux drivers (customizable), Android platform drivers (customizable)
|
| Software |
DirectShow components, Halcon-specific components, LabVIEW-specific drivers, OCX components, and TWAIN components
|
| Vision Standard Protocol |
dshow twain
|
| Certification |
CE,RoHS
|
Other functions
|
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
