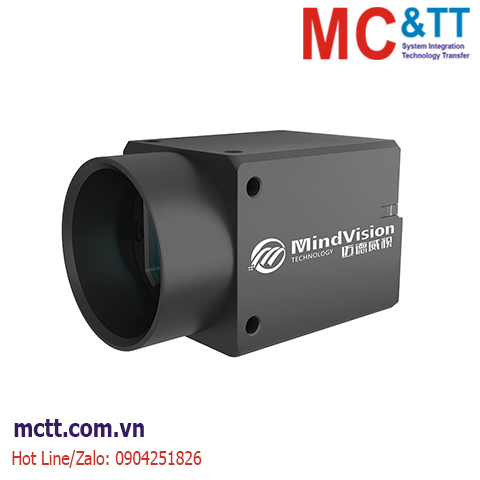

Camera công nghiệp USB3.0 Area Scan 3MP, 1/1.8", 3.4um, 2048x1536, 119.75fps MindVision MV-SUS307GM
The transmission speed of USB3.0 is significantly higher than USB2.0 and GigE cameras. With 5Gbps transmission bandwidth and high speed sensor, the camera of 0.3MP and 800 fps can achieve a minimum transmission time of 1.2 ms, and a 20MP pixel camera can also reach 18fps; Due to the abundant transmission bandwidth, a computer is compatible with multiple camera operation, meanwhile, high frame rate can be guaranteed; The USB 3.0 series has a low CPU utilization, adopting DMA transmission, and the 5Gbps data tranmission hardly occupies CPU resources.
Tính năng
- The camera comes with programmable IO.
- Support external trigger strobe to take photos synchronously.
- Support 8bit to 12bit raw data output
- Fully compatible with GIGE camera's SDK for seamless replacement.
- Multiple cameras on one computer can work stably without dropping or losing frames for a long time
- Support PC Linux system and ARM Linux system, available to be integrated into embedded devices
- Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, Labview and other vision software.
Thông số kỹ thuật
| Model |
Product Model |
MV-SUS307GC |
MV-SUS307GM |
|
Product Name |
USB3.0 Camera
|
Sensor
|
Color/Mono |
Color |
Mono |
| Sensor Model |
MindVision
|
| Sensor Type |
CMOS
|
| Optical Size |
1/1.8" |
| Pixel Size |
3.4um x 3.4um
|
| Exposure Method |
Global Shutter
|
| Efective Pixels |
3MP
|
| AD Width |
12bit
|
Performance
Parameters
|
Signal-to-Noise Ratio |
39.3dB |
| Dynamic Range |
66.9dB |
| Sensitivity |
2.36 x10^7 e-/((W/m^2)·s)@540nm |
| Quantum Efciency |
75% @540nm
|
| Resolution@Frame Rate |
2048X1536 MAX@119.75FPS |
| Output Pixel Width |
12bit
|
| Video Output Format |
Bayer GB 8/12 bit |
Mono 8/12 bit |
| Maximum gain |
16X
|
| Exposure Time Range |
0.0053-44291.8ms
|
| Trigger Mode |
Continuous/Software Trigger/Hardware Trigger
|
| Frame Bufer |
128MB
|
| User-Defned Data Area |
2KB
|
Electrical
Characteristics
|
Data Interface |
USB3.0 |
| I/O Port |
1 opto-isolated input, 1 opto-isolated output, 1 non-isolated configurable I/O |
| Power Supply |
USB 5V / Aviation plug power supply 12V-24V |
| Power |
≤3W
|
Structural
Characteristics
|
Heat Dissipation Method |
Aluminum Alloy Body Natural Cooling
|
| Lens Mount |
C Mount
|
| External Dimensions |
29x29x38.9mm (excluding lens mount and rear shell interface)
|
| Weight |
<60g
|
| Ingress Protection Rating |
IP40
|
| Temperature |
Operating Temperature 0~50°C / Storage Temperature -30~60°C
|
| Humidity |
Operating Humidity 20~80% (non-condensing) / Storage Humidity 20~95% (non-condensing)
|
Protocol
Standards
|
Operating system |
WINXP/7/8/10/11 systems (32 & 64-bit), Linux systems (32 & 64-bit), ARM Linux system, Android system, MAC system
|
| Software |
Supports USB3 Vision protocol software, Directshow component, special component for Halcon, special driver for Labview, OCX component and TWAIN component
|
| Vision Standard Protocol |
USB3Vision, GenICam
|
| Certification |
CE,RoHS
|
Other functions
|
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
