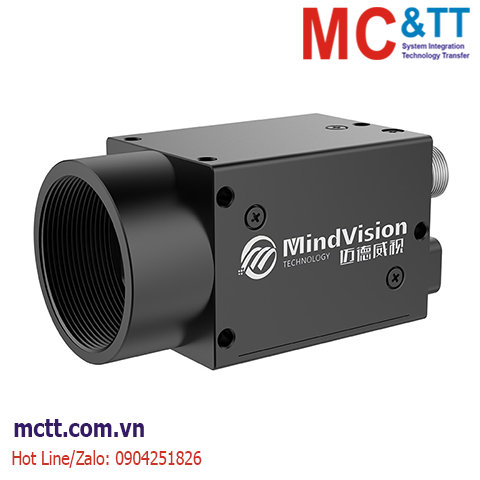

Camera công nghiệp GigE Area Scan 5MP, 1/2.7", 2um, 2608x1944, 24fps MindVision MV-GE506M
MV-GE506C/GM has high definition, low noise, excellent performance, easy installation and usage and other features. It is suitable for industrial inspection, medical treatment, scientific research, education, security and other fields
Tính năng
- 100 meters long-distance stable transmission,optional POE power supply.
- Compatible with VISION standard, the free drive directly supports software such as Halcon and VisionPro.
- Support external trigger and flash synchronization, up to 7 GPIO, all opto-isolated.
- Support 8bit lossless format output.
- SDK supports Windows, Linux, Mac OS systems.
- Unique data packet retransmission technology ensures reliable data transmission.
- Excellent SDK, easy to use like a USB camera, plug and play.
- Support multiple cameras working at the same time, the number is not limited, and can be networked arbitrarily
Thông số kỹ thuật
|
Model |
MV-GE506C |
MV-GE506M |
Sensor
|
Color/Mono |
Color
|
Mono |
| Sensor Model |
MindVision
|
| Sensor Type |
CMOS
|
| Optical Size |
1/2.7"
|
| Pixel Size |
2.0umx2.0um
|
| Exposure Method |
Line Exposure |
| Efective Pixels |
5MP |
| AD Width |
12bit |
Performance
Parameters
|
Signal-to-Noise Ratio |
39.5dB |
| Dynamic Range |
74dB |
| Sensitivity |
2500mv/lux·s @540nm |
| Quantum Efciency |
65.9%(R)@600nm ；88.1%(G)@520nm；69.7%(B)@480nm；79%（BK)@500nm |
| Resolution@Frame Rate |
2608x1944 MAX@24FPS |
| Output Pixel Width |
8bit
|
| Video Output Format |
Bayer BG 8bit |
Mono 8bit |
| Maximum gain |
15.7X |
| Exposure Time Range |
0.021~1376.2ms
|
0.021~1376.2ms |
| Trigger Mode |
Continuous/Software Trigger/Hardware Trigger |
| Frame Bufer |
128MB |
| User-Defned Data Area |
2KB |
Electrical
Characteristics
|
Data Interface |
Gigabit Network Port |
| I/O Port |
1 optocoupler input, 1 optocoupler output; 3 inputs and 4 outputs optional |
| Power Supply |
DC12-24V / POE48-57V (POE is optional) |
| Power |
<2W
|
Structural
Characteristics
|
Heat Dissipation Method |
Aluminum Alloy Body Natural Cooling
|
| Lens Mount |
C mount
|
| External Dimensions |
29x29x40mm (excluding lens mount and rear shell interface) |
| Weight |
<75g |
| Ingress Protection Rating |
IP40 |
| Temperature |
Operating Temperature 0~50°C / Storage Temperature -30~60°C |
| Humidity |
Operating Humidity 20~80% (non-condensing) / Storage Humidity 20~95% (non-condensing) |
Protocol
Standards
|
Operating system |
WINXP/7/8/10/11 systems (32 & 64-bit), Linux systems (32 & 64-bit), ARM Linux system, Android system, MAC system |
| Software |
Supports GigE Vision protocol software, DirectShow components, Halcon-specific components, LabVIEW-specific drivers, OCX components, and TWAIN components |
| Vision Standard Protocol |
GigE Vision, GenICam |
| Certification |
CE,RoHS |
Other functions
|
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
