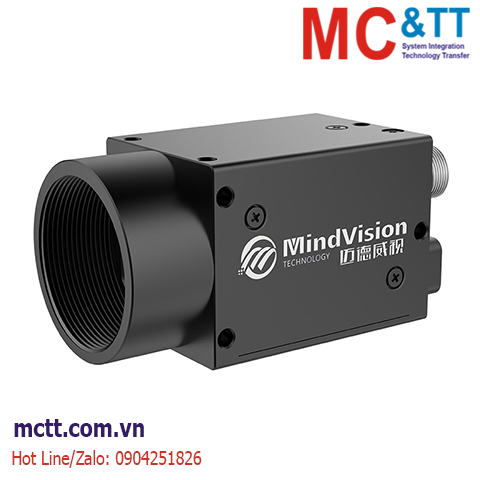

Camera công nghiệp GigE Area Scan 0.3MP, 1/2.7", 8um, 640x480, 160fps MindVision MV-GE33GC
MV-GE33GC/GM has high definition, low noise, excellent performance, easy installation and usage and other features. It is suitable for industrial inspection, medical treatment, scientific research, education, security and other fields.
Tính năng
- 100 meters long-distance stable transmission, optional POE power supply.
- Compatible with VISION standard, the free drive directly supports software such as Halcon and VisionPro.
- Support external trigger and flash synchronization, up to 7 GPIO, all opto-isolated.
- Support 8bit lossless format output.
- SDK supports Windows, Linux, Mac OS systems.
- Unique data packet retransmission technology ensures reliable data transmission.
- Excellent SDK, easy to use like a USB camera, plug and play.
- Support multiple cameras working at the same time, the number is not limited, and can be networked arbitrarily
Thông số kỹ thuật
| Model |
MV-GE33GC |
MV-GE33GM |
| Sensor |
1/2.7" CMOS
|
| Shutter type |
Global shutter
|
| Camera type |
Color |
Mono |
| Pixel size |
8umx8um
|
| Effective pixels |
0.3MP
|
| Resolution @ frame rate |
640X480@160FPS |
| Exposure mode |
Frame exposure
|
| Signal to Noise Ratio |
40dB
|
| Dynamic range |
60dB
|
| Sensitivity |
8 V/lux-s
|
| GPIO |
1 way optical isolation input, 1 way optical isolation output; optional 3 inputs and 4 outputs
|
| Output pixel width |
8bit
|
| AD width |
10bit
|
| Frame buffer |
128M Bytes
|
| Exposure time |
0.0060~49.1ms |
| Maximum gain (multiple) |
16 |
| User EEPROM |
2K Bytes
|
| Video output format |
Bayer RG 8bit |
Mono 8bit |
Visual standard protocol
|
GigE Vision, GenICam
|
| Lens interface |
C/CS mount, provide with an adapter ring
|
Port
|
Gigabit Network and POE (Optional)
|
| Power supply |
12~24V/POE 48~57V(POE is optional)
|
| Power |
<2.5W
|
| Boundary dimension |
29(mm)X29(mm)X40(mm) (without lens and rearcase connectors) |
| Weight |
<75g
|
| Working temperature |
0~50℃
|
| Working humidity |
20~80%(No Condensation)
|
| Storage temperature |
-30~60℃
|
| Storage humidity |
20~95%(No Condensation)
|
| Operating system |
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system |
| Drive program |
Directshow components Halcon special components Labview dedicated drive OXC components TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions |
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
