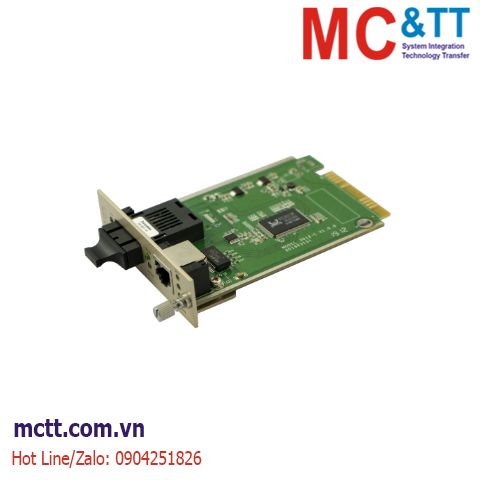

Card chuyển đổi quang điện 1 cổng Gigabit Ethernet 3onedata Model3012-C1
Model3012-C1 is Gigabit rack card of media converter. The product supports Gigabit copper port and Gigabit fiber port. It adopts slide-in mounting and could be used with the media converter rack RACK2000B.
The product supports IEEE802.3/802.3u/802.3x/802.3ab standards. Its copper port supports 10/100/1000M, full/half duplex and MDI/MDI-X self-adaption. It could realize data communication between 10/100/1000Base-T(X) twisted pair and 1000Base-FX optical cable, which can extend transmission distance and has good isolation protection and data security.
Hardware adopts low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
Tính năng
- Support 1 Gigabit copper port and 1 Gigabit fiber port
- Input voltage 5VDC
- Support -10~60℃ wide temperature range operation
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X |
|
Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 1000Base-FX, optional SC/ST/FC |
|
LED Indicator |
Copper port connection status indicator, copper port duplex mode indicator, fiber port connection status indicator, power supply connection status indicator, copper port speed indicator, fiber port duplex mode indicator |
|
Switch Property |
Transmission mode: store-and-forward
Switch time delay: ＜10μs
Mac address: 1K
Packet buffer size: 12KB
Backplane bandwidth: 4G |
|
Power Supply |
Input voltage: 5VDC |
|
Power Consumption |
No-load: ≤1.55W@5VDC
Full-load: ≤2.35W@5VDC |
|
Operating Environment |
Operating temperature range: -10~60℃
Storage temperature range: -20~70℃
Relative humidity: 5%～95% (no condensation) |
|
Physical Characteristic |
Installation: slide-in mounting
Weight: 0.05kg
Dimension (W x H x D): 114.7mm×77.4mm×26mm |
|
Certification |
CE, FCC, RoHS |
Thông tin đặt hàng
|
Available Models |
1000M Copper Port |
1000M Fiber Port |
Power Supply |
|
Model3012-C1 |
1 |
1 |
5VDC |
